48v 100ah 200ah批發家用混合動力壁掛式儲能可充電太陽能鋰lifepo4電池組

2023-08-18 06:01

規範

型號	AIN HP5.1L-A1	AIN HP7.6L-A1	AIN HP10.2L-A1
Nominal Parameters
電壓	48/51.2V	48/51.2V	48/51.2V
容量	100Ah	150Ah	200Ah
能源	5.12kwh	7.68kwh	10.24kwh

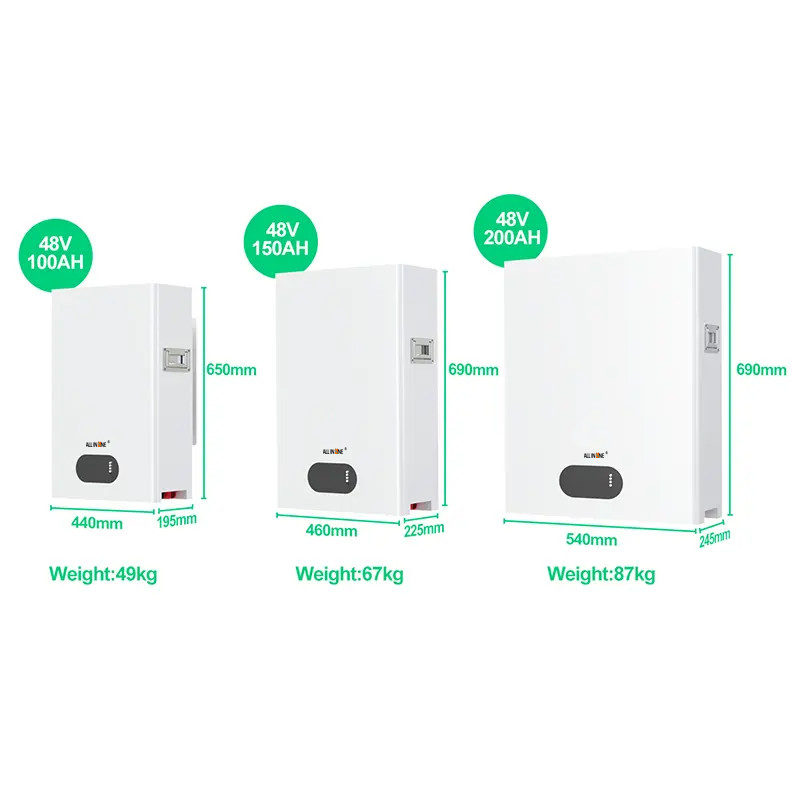

Dimensions (L xWxH)	440x695x195mm	460x690x225mm	540x690x245mm
重量	49公斤	67kg	87kg
基本參數
Life Times (25C)	20 Years	20 Years	20 Years
Life Cycles (80% DOD, 25°C)	5000 Cycles	5000 Cycles	5000 Cycles
Storage Time /Temperature	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C	5 months @25°C; 3 months @35°C; 1 month @45°C
工作溫度	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity	""-20°C to 60°C @60+/- 25% Relative Humidity
貯存溫度	0°C 至 45°C @60+/-25% 相對濕度	0°C 至 45°C @60+/-25% 相對濕度	0°C 至 45°C @60+/-25% 相對濕度
鋰電池標準	1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3
Enclosure Protection Rating	IP31Rating
Electrical Parameter
Operation Voltage	40-57.6Vdc	40-57.6Vdc	40-57.6Vdc
Max charging Voltage	58Vdc	58Vdc	58Vdc
Max charging and Dis charging Current	100A	150A	200A
最大功率	5120W	7680W	10240W

我們的工廠

ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.

常問問題

問：您是貿易公司還是製造商？
A: We are ALL IN ONE original factory.

問：我可以提供樣品進行測試嗎？樣品訂單的交貨時間是多少？
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.

問：您提供售後服務嗎？
答：是的，保修期為12個月，如果在此期間我們方面有任何質量問題，我們可以寄出新的作為替換。

問：您接受OEM / ODM嗎？
答：可以。

問：您電池的實際容量是多少？
答：我們所有的A級電池均具有100％的全新和實際容量。

問：您擁有哪種證書？
答：如果您的訂單量很大，我們可以提供CE，ROHS，FCC，IEC62133，MSDS，UN38.3。

問：您有起訂量嗎？
A：沒有限制。也歡迎小批量訂購。數量更多，價格更優惠，我們將為您查詢最優惠的價格。

問：您的付款條件是什麼？
答：我們採用電匯，Paypal，阿里巴巴等付款方式。

Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
