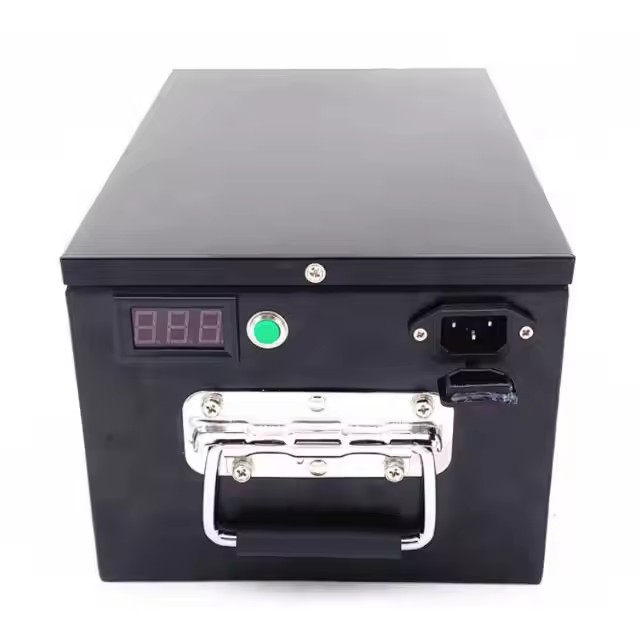

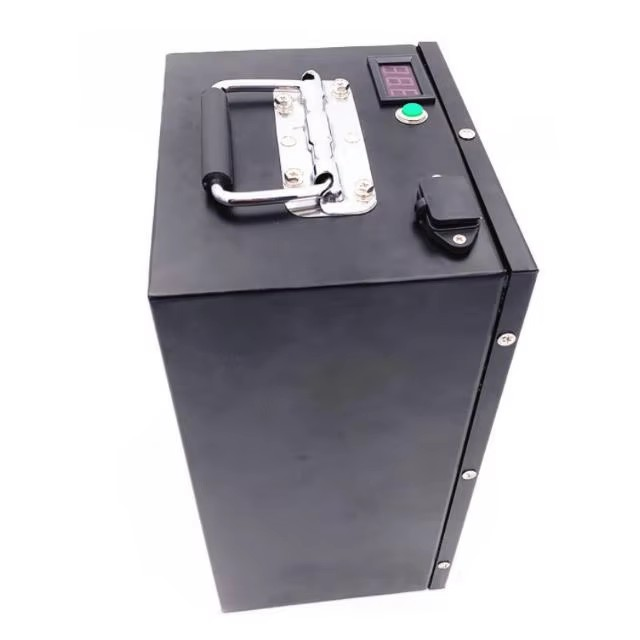

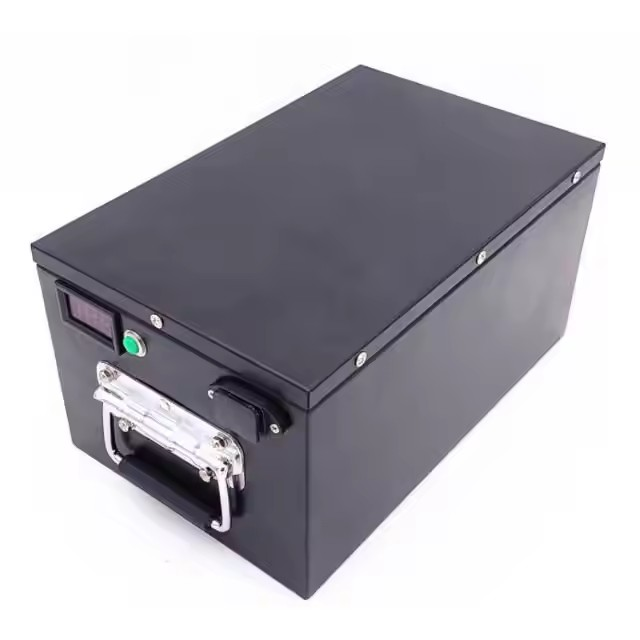

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

規範

項目	規範	注意
標稱電壓	60伏	Any voltage can be customized
Nominal Capacity:	100Ah	Any capacity can be customized
Discharge Cut-Off:	47.5V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
阻抗：	≤200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
尺寸：	Flexible	Any dimension can be customized
重量：	120KG

特徵

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

內置BMS

項目	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
收費 過流保護	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
卸貨 Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
短 protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	外型尺寸	重量	with BMS	RS485/Bluetooth	Cycles	保證
60V 10AH	195*165*175mm	9.5kg	是	可用的	6000times	5年
60V 20AH	330*175*220mm	19公斤	是	可用的	6000times	5年
60V 30AH	407*175*235mm	25公斤	是	可用的	6000times	5年
60V 40AH	407*175*235mm	28公斤	是	可用的	6000times	5年
60V 50AH	525*240*215mm	44kg	是	可用的	6000times	5年
60V 120AH	420*360*550mm	84kg	是	可用的	6000times	5年
60V 200AH	1000*600*182mm	156kg	是	可用的	6000times	5年

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

應用

我們的工廠

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



常問問題

1.問：你們支持樣品訂單嗎？

答：是的，歡迎訂購樣品，我們在美國和歐洲設有倉庫，部分樣品可以快速出貨。

2.問：產品有內建BMS嗎？

答：是的，內建智慧型 BMS 包括 JBD/PACE/SmarTec，以確保電池得到智慧管理。

3.Q: Can your company accept customized order ?

答：當然，定制是我們的強項。

4.問：電池組能相容於市面上的逆變器嗎？

答：是的，先生，我們的電池組與市場上 20 多個逆變器品牌相容，包括 Victron、Goodwe、Solis、Growatts、Voltronics、Deye 和其他知名品牌。

5.問：保固如何？

A: 5 years upto its usage.

6.問：你們有什麼認證嗎？

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.問：送貨方式和時間如何？

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.問：你們有真正的工廠嗎？

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
