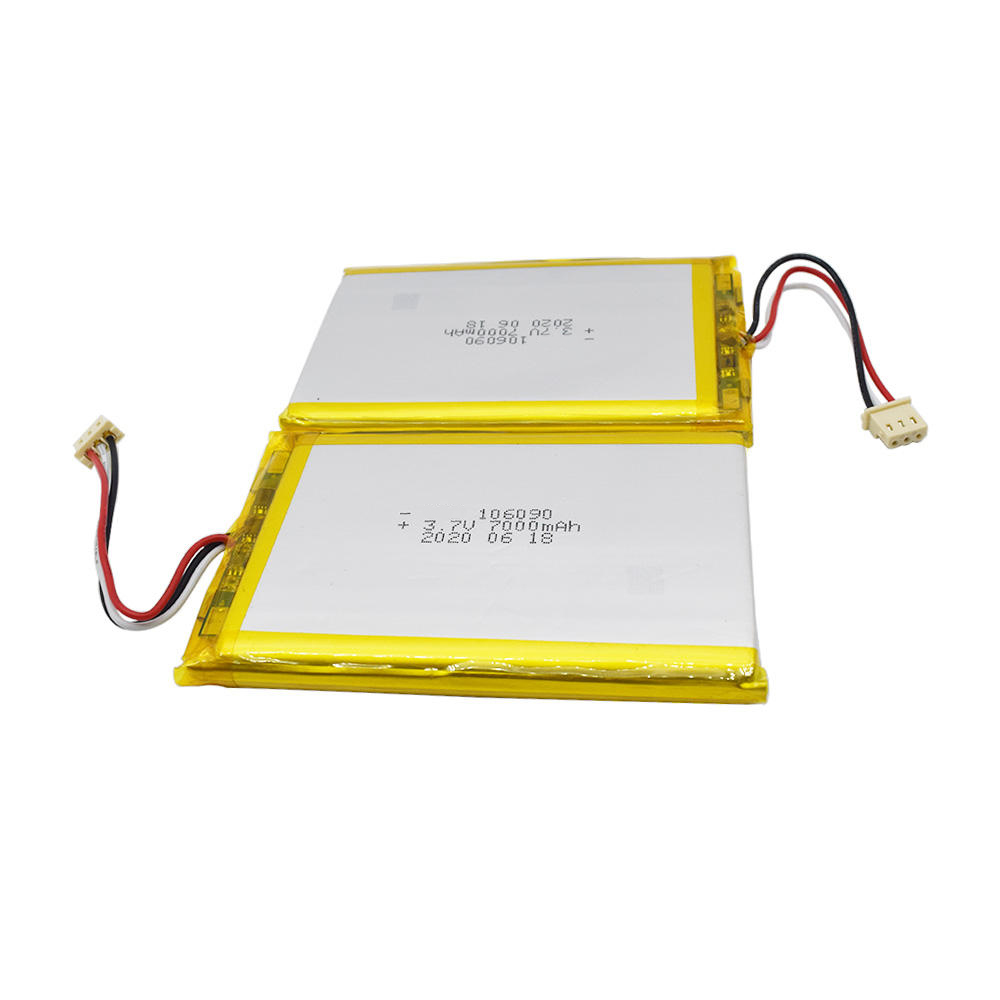

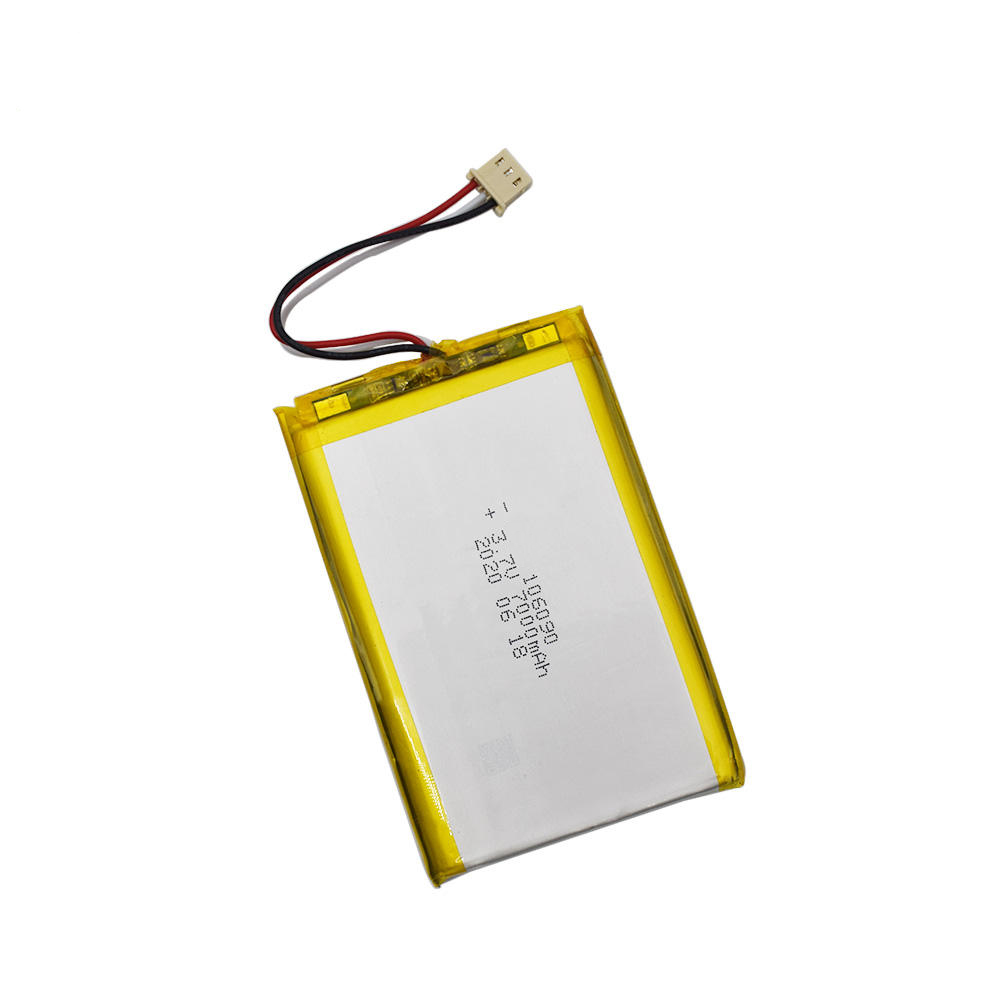

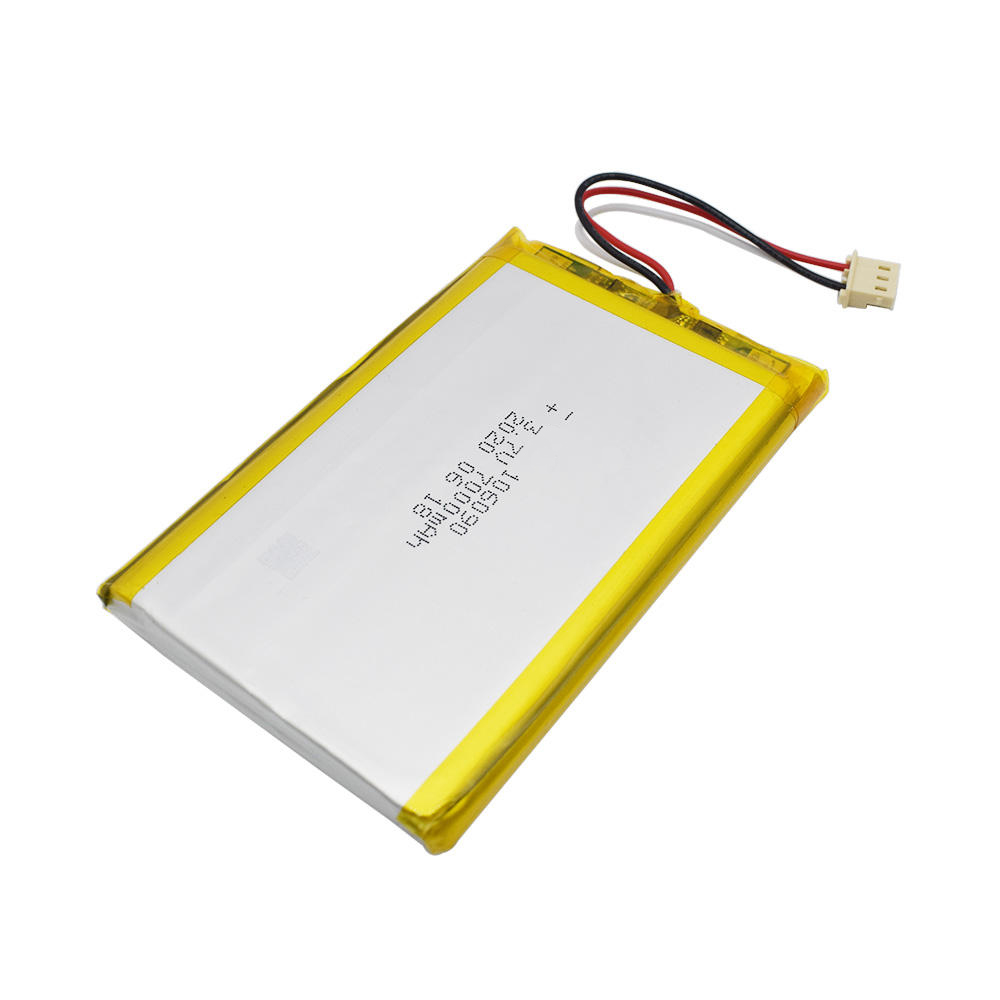

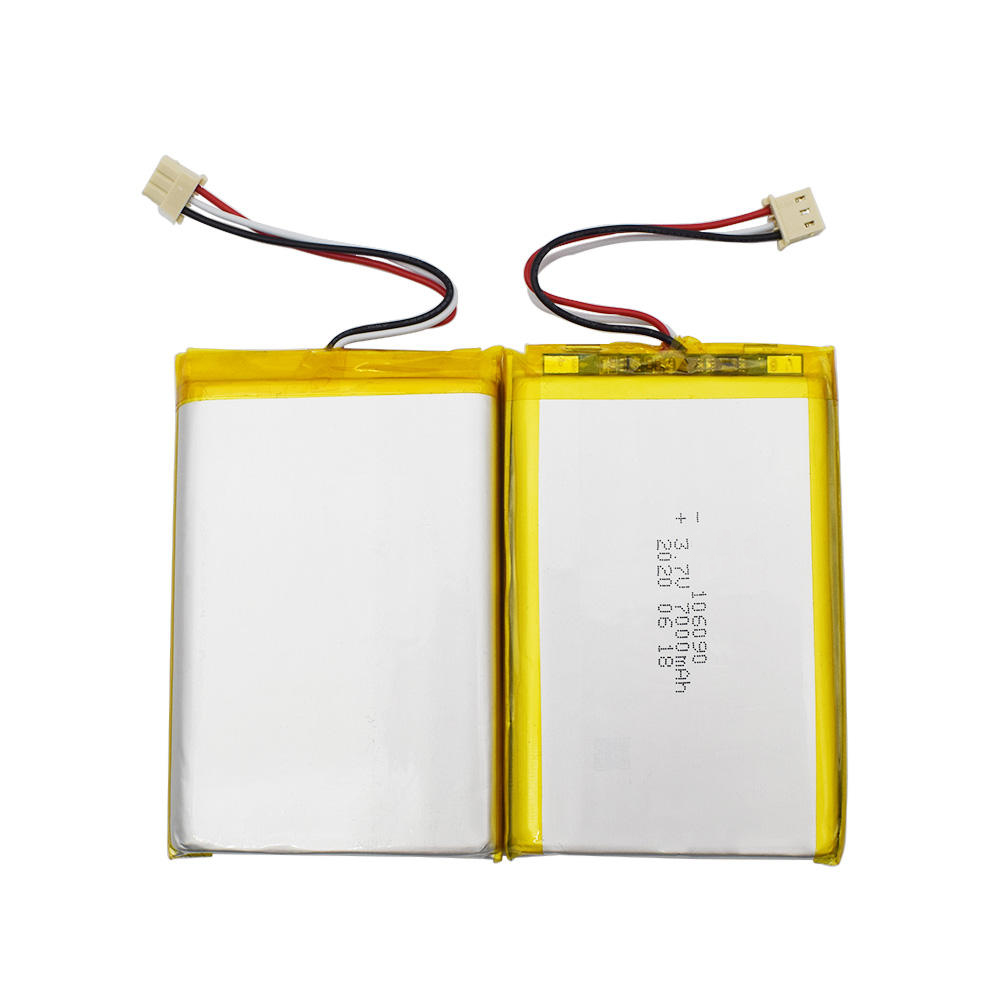

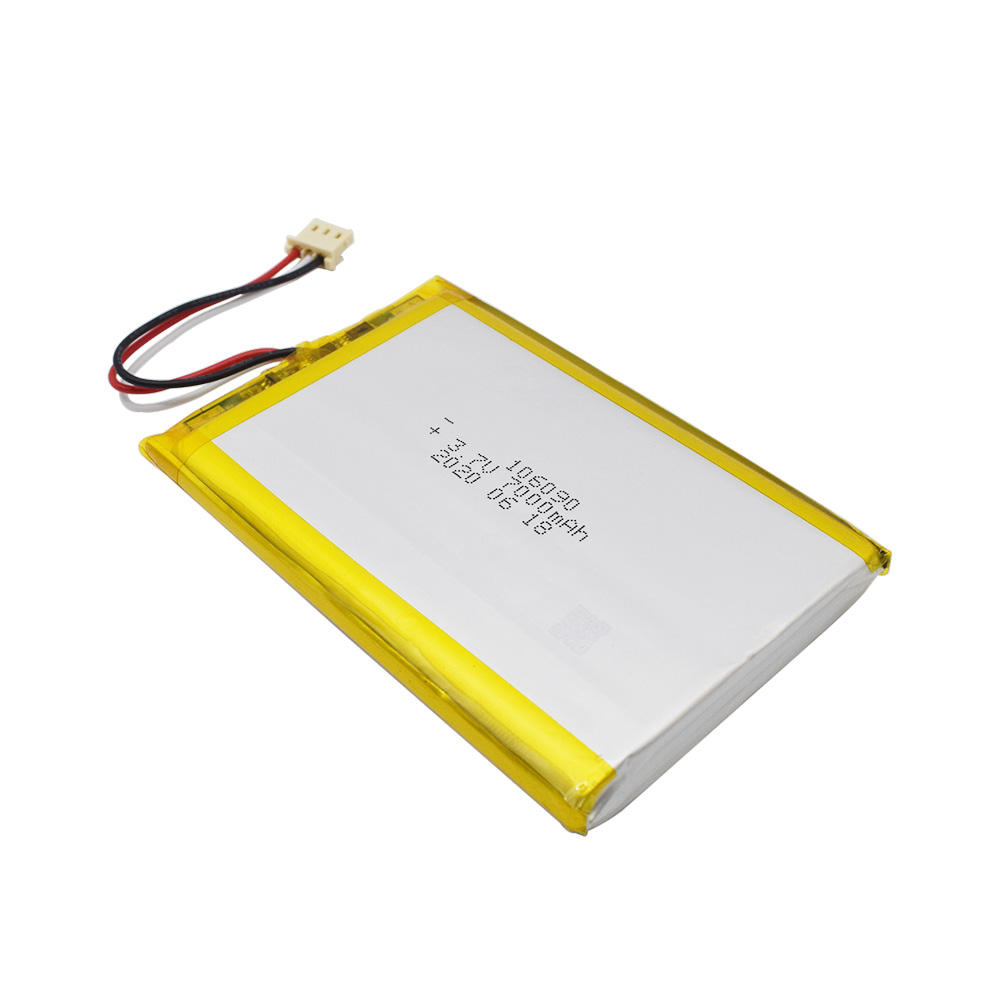

LiPO Battery 106090

2026-07-06 09:04

規範

物品參數
Battery modelAIN106090
標稱電壓3.7伏
最小容量7000mAh
充電電壓4.2伏
放電截止電壓3.0伏
標準充電0.2度/4.2V
Max charging1.0C /4.2伏
Standard discharging0.2C / 3.0V
Max discharging



continuous discharge1.0C / 3.0V
non-continuous discharge2.0C / 3.0V
Shipment voltage≥3.85V
Battery pack impedance
工作溫度



充電:0°C〜45°C
Discharging: -20°C ~60°C
Storage (At 50% SOC and specified temp,
recoverable capacity in % vs time )





-10℃~25℃ (12 months ≥85% )



-10℃ ~45℃ (6 months ≥85% )



-10℃~55℃ (1 month ≥90% )

推薦的存儲溫度為20±5℃
視力檢查There should not be any remarkable scratches, cracks,
bolts, cauterization, deformations, swelling, leakage
and so on the surface of the cell.

特徵
1. High density of energy
2.環保
3. Long cycle life, chargeable up to 500 times
4. Low internal resistance
5. Short-circuit production function, safe and reliable
6. Good consistency, low self-discharge
7. Can be customized numerous sizes
8. Wide application for electronics and industry

we promise
1.所有產品出廠前都會經過100%的測試,以確保產品沒有任何質量問題。
2.我們保證自收到貨物之日起12個月內不包括人為損壞。如有質量問題,我們將提供退貨服務。

客戶服務
1.OEM ODM service is acceptable.
2.最大訂購量為1000pcs,樣品費可退還。

應用

我們的工廠

We can provide you with customized services.

Customized different voltage and capacity lithium polymer battery.

The capacity and dimension can customize according to your request

1.Customized battery size and shell material.
2.Customized protection board charging and discharging current.
3.Customized connect plug and socket, connector wire.



包裝和運輸

Shipping optionsRecommend交貨時間






Express

DHLwidely recommend3-7 business days
UPSwidely recommend3-7 business days
FEDEXrecommend5-7 business days
TNTrecommend5-7 business days
EMSwidely recommend5-10 business days
Post mailfor sample order7-60 business days
Airfreightfor sample order5-7 business days
By seafor sample order7-35 business days

常問問題

1,Q:ALL IN ONE的主要產品是什麼?
答:可充電電池。鋰離子,鋰電池和動力電池組。

2,問:什麼是超額收費?
A: 充電後,測試電池的初始狀態和容量。以 3C 電流充電至 10.0V,然後以 CV 模式充電至 0.01C。
觀察電池外觀變化。

3,問:什麼是過放電?
A: 充電後,測試電池的初始狀態。電池正常時,以0.5C放電至0V。觀察變化
電池外觀。

4.問:我可以訂購樣品嗎?
答:是的,我們接受樣品訂單以測試和檢查質量。可以根據需要製造電池。

5.問:您有起訂量限制嗎?
答:是的,我們有批量生產的起訂量限制,但取決於電池型號。請聯繫我們。

6.問:交貨時間如何?
答:樣品需要5到7個工作日。批量生產將需要25-30天。這取決於數量。

7.問:運輸和交貨時間如何?
A: 通常,電池將通過快遞運輸,例如 DHL、TNT、FedEx 和 UPS,交貨時間為 3-5 個工作日。或 DDP
服務,交貨時間為 11-15 個工作日。也可提供空運和海運。

8.問:售後服務如何?
答:我們將為您提供1年保修。如果有任何問題,請通知我們,我們將為您提供積極的解決方案。





注意: 我們是一家電池製造商。所有產品不支持零售,我們只做B2B業務,產品價格請聯繫我們!
