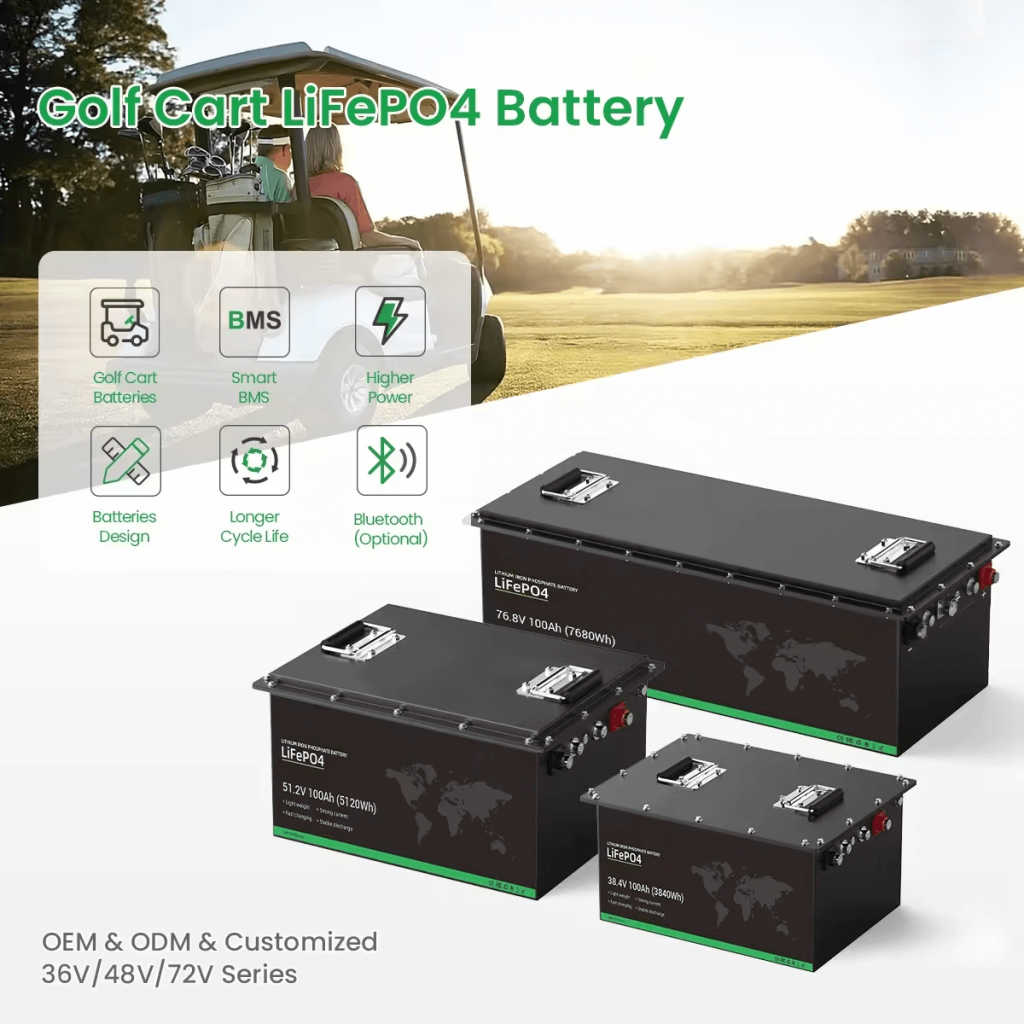

LiFePO4 Battery for Golf Cart ( OEM/ODM ) TECHNICAL SPECIFICATION | |||||
Data sheet | 標稱電壓 | 標稱容量 | Nominal Energy | 尺寸 | 重量 |
36V (Support Customized Capacity/Size) | |||||
LFP36-50 | 38.4伏 | 50Ah | 1920瓦時 | 522*238*218mm | ≈18.5kg |
LFP36-60 | 38.4伏 | 60小時 | 2304Wh | 522*238*218mm | ≈21kg |
LFP36-80 | 38.4伏 | 80Ah | 3072Wh | 522*238*218mm | ≈25.5kg |
LFP36-100 | 38.4伏 | 100Ah | 3840瓦時 | 522*238*218mm | ≈31kg |
48V (Support Customized Capacity/Size) | |||||
LFP48-50 | 51.2伏 | 50Ah | 2560瓦時 | 522*238*218mm | ≈25kg |
LFP48-60 | 51.2伏 | 60小時 | 3072Wh | 522*238*218mm | ≈31kg |
LFP48-80 | 51.2伏 | 80Ah | 4096Wh | 522*238*218mm | ≈32.5kg |

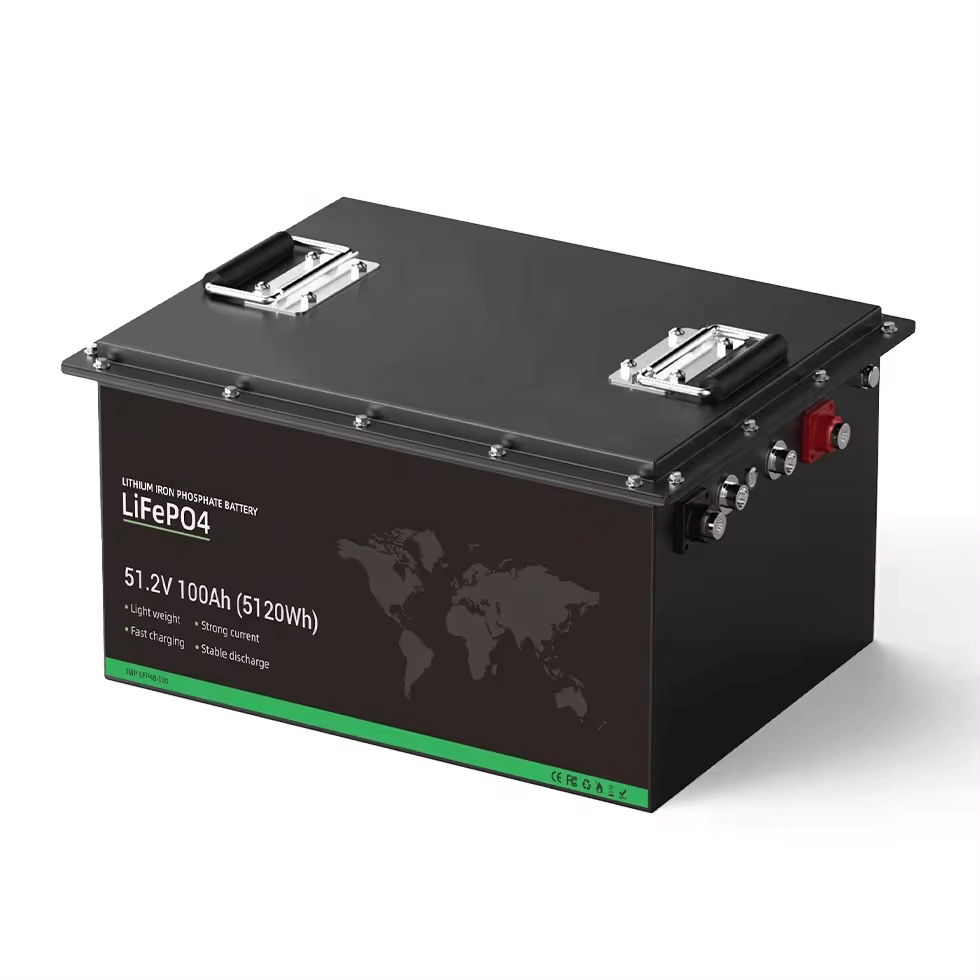

LFP48-100 | 51.2伏 | 100Ah | 5120瓦時 | 640*245*220mm | ≈38.5kg |
72V (Support Customized Capacity/Size) | |||||
LFP72-50 | 76.8V | 50Ah | 3840瓦時 | 470*330*150mm | ≈50kg |

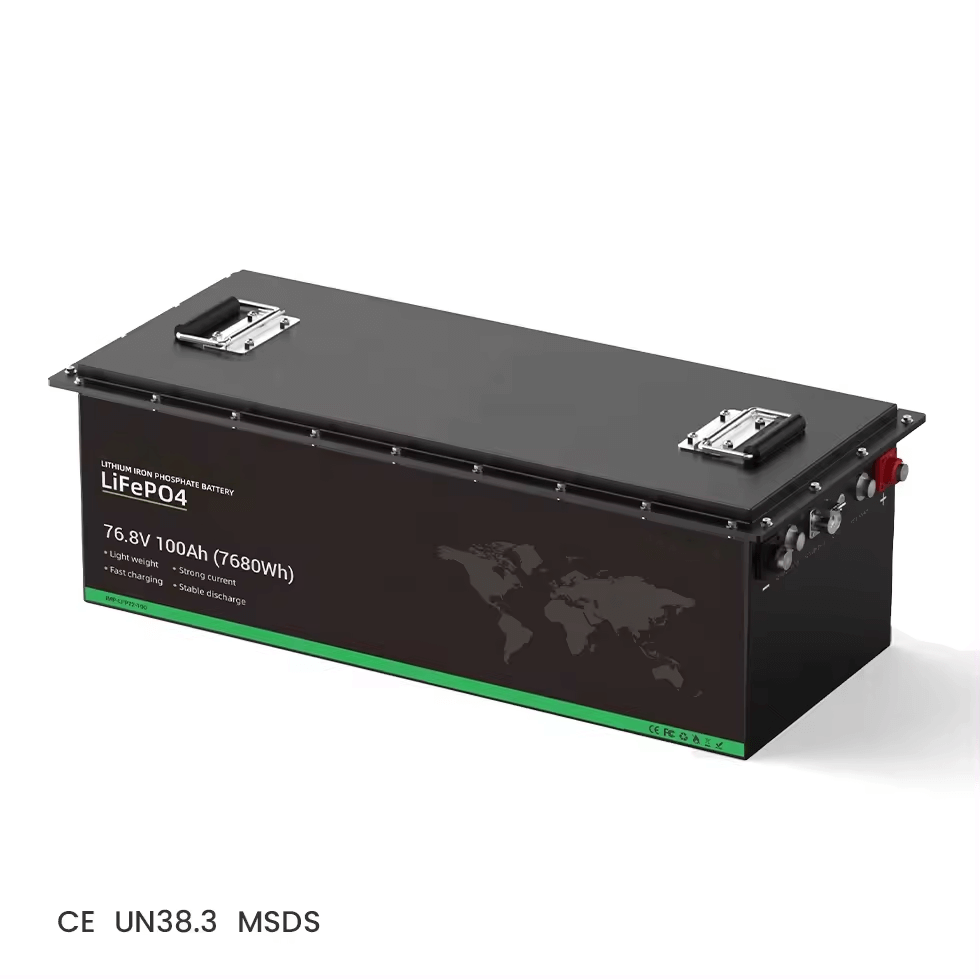

LFP72-100 | 76.8V | 100Ah | 7680Wh | 730*350*150mm | ≈65kg |
General | |||||
生命週期 | ≥6000 cycles (80%DOD), at 25°C | ||||
充電溫度 | 0 ~ 45°C (32 ~ 113°F) | ||||
放電溫度 | -20 ~ 55°C(-4 ~ 131F) | ||||
貯存溫度 | -10 ~ 45°C(14 ~ 113°F) | ||||
Communication Mod | Vehicle CAN/ Charge CAN/ Intranet CAN/ 485 communication/ Wireless communication |
The Right Choice
1. ALL IN ONE lithium batteries are drop-in solutions
2.Outlasts equivalent lead-acid batteries
3.Top quality standards and proven results in many applications
性能
- Single battery operation
- Little or no voltage drop
- Fast travel speed at all levels of discharge
ALL IN ONE Battery Safety and Sustainability
- No acid fumes or spills
- Reduce use of electricity
- Less waste
- 99% recyclable
應用
我們的工廠
運輸包裝
1.Pack in safety industrial package, with IATA shipping standard.
2. For sample or small order: ship by DHL, UPS, FedEx and TNT etc…
3.對於大訂單,請通過AIR或OCEAN發貨。
常問問題
問:您是貿易公司還是製造商?
A: We are ALL IN ONE original factory from Anhui Province , China.
Q. Can I print my LOGO on it?
A: YES, LOGO/sticker/OEM/ODM welcomed
Q. Can your battery be wired in series or parallel?
A: YES,YOU can connect up to ANY of these batteries in parallel. For series, suggest within 3 units.
Q. Can the BMS be removed and replaced if it breaks? Can the case be opened to replace a bad cell?
A: YES, the case can be opened to replace the BMS & cells on the guidance of engineer.
問:我可以提供樣品進行測試嗎?樣品訂單的交貨時間是多少?
A: Yes,we can supply samples,the lead time for samples is 7 days.and buyer pay for sample cost and shipping cost.
Q. What warranty do I have?
A: Warranty: 3 years, we would provide repair or replacement with the warranty period.if any quality problems on our side in this period, Please show us video or photos for confirm before we sent solution.
問:您接受OEM / ODM嗎?
A: Yes,it is available.We have OEM group to design battery case.

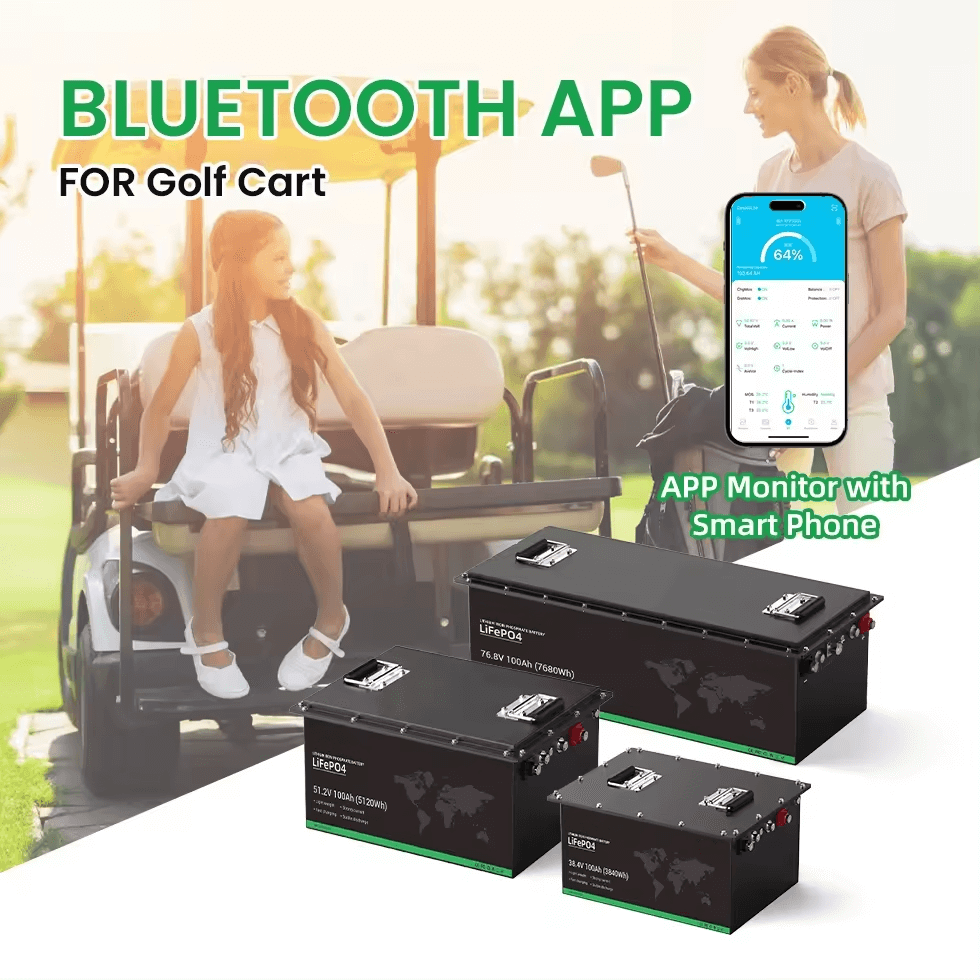

Q. Do you have Blue-tooth communication with your batteries?
A: Yes, please let us know if you NEED to add Blue-tooth communication with the batteries. and YOU can rename your battery in the App.
Q. Does the app allow to check the voltage of each cell?
A:是的,該應用程序允許您隨時讀取每個電壓。
問:您電池的實際容量是多少?
A: All of our battery cells with Grade A,100% new and real capacity. We promise 100% Top grade A. If you found it is not A battery cell, you can contact us for refund.
問:您擁有哪種證書?
A: We can provide CE,ROHS,FCC,IEC62133,MSDS,UN38.3 etc.
問:您有起訂量嗎?
A:沒有限制。也歡迎小批量訂購。數量更多,價格更優惠,我們將為您查詢最優惠的價格。
問:您的付款條件是什麼?
A: We adopt T/T,Paypal, payment way and so on. If order amount>10K usd, The payment term will be 30% T/T for deposit and the balance before shipment。
Q. If your lithium battery goes into protection mode, how do you wake it up?
- 答:使用鋰充電器喚醒電池。鋰充電器會自動喚醒電池。
