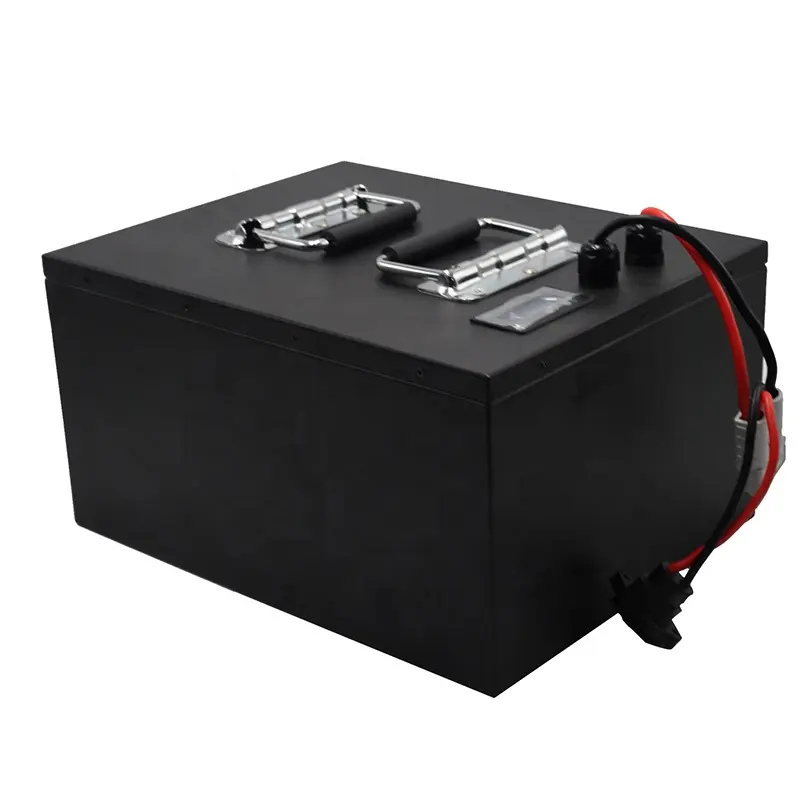

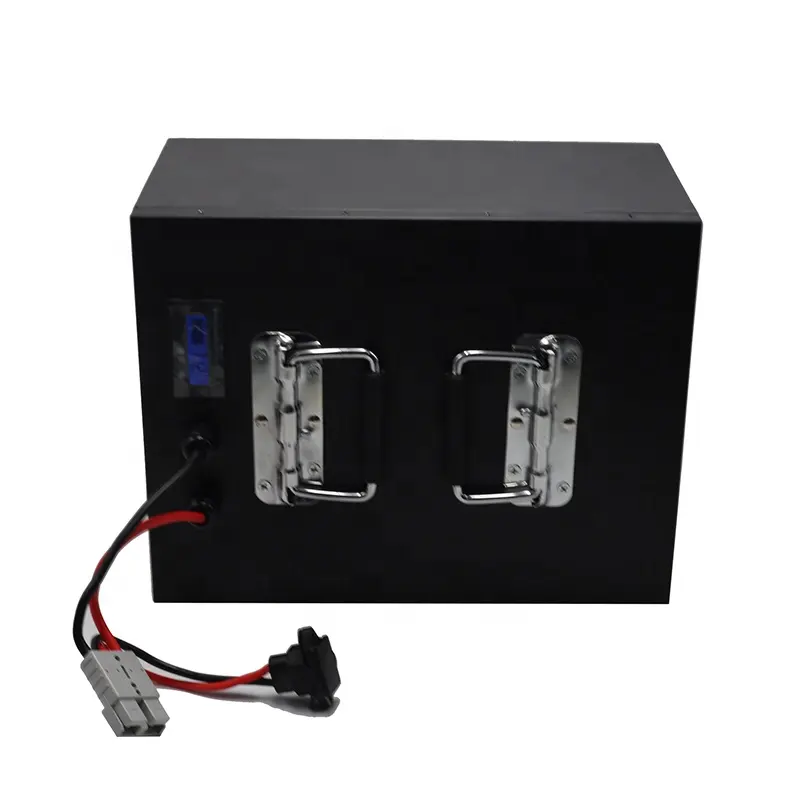

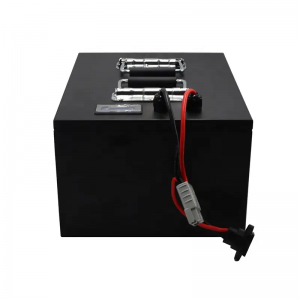

客製化 LiFePO4 電池組 72v 60ah 電動車電池鋰離子電池組 適用於電動車

2023-06-06 02:13

規範

品牌	一體
模型	AIN7260
保證	5年
標稱電壓	76.8V
標稱容量	[email protected]/customize
能源	4416Wh
內部阻力	≤50mΩ
循環壽命	4000 Cycles @ 0.2C Charging/Discharging ,Until 80% Capacity
自放電	25℃每月≤3.5％
最大充電電壓	87.6 V
充電方式	At 0℃~45℃ temperature, charged to 87.6  V at a constant current of 0.2C, and then,changed continuously with constant voltage of 87.6 V until the current was not more than 0.02C
充電電流	30A
最大充電電流	60A
放電電流	30A
Max. discharge Continuous Current	60A
最大脈衝電流	120A(<3S）
放電截止電壓	60伏
充電溫度	0℃至45℃（32℉至113℉）@ 60±25％相對濕度
放電溫度	-20℃至60℃（-4℉至140℉）@ 60±25％相對濕度
貯存溫度	0℃至45℃（32℉至113℉）@ 60±25％相對濕度
防水防塵	IP55
單元格和格式	LFP  60AH 24S1P/customize
套管	Metal Case
尺寸（長*寬*高*高）	定制
重量	50kg
終奌站	M6 or Anderson or another bolt screw
Peak discharge current BMS	60A
High temp port. Low temp port.	over charge port. over discharge port.
收費方式	CC / CV
Terminal Type	M6 or Anderson or another bolt screw/customize
證書	CE, RoHS ,MSDS and UN38.3 certification
applications	Golf Carts, Electric Forklifts,Slow Speed Car; AGV,Electric Motorcycle; Sightseeing car;RV ,Tricycle, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies, Solar Energy Storage Systems,BOATS

提醒

1.Support customization, according to the specifications required by customers: voltage, capacity, power, working current, size,weight.

2. Factory wholesale price, our factory has a price advantage. Cells of the same level are the cheapest, and you can choose the corresponding cells to make a battery pack according to your requirements.

3.Before placing Order please contact customer service to communicate the required specifications to confirm the price.

應用

我們的工廠

Why to choose us?

* We have our own factory and company, which belong to an absolute integration of industry and trade.
* A large number of batteries are in stock.
* Have very good product resources.
* Good product quality and favorable price.
* The product is 100% original and brand new.
* 100% on time delivery. Fast delivery.(including battery pack <7 days).
* Long warranty 2-5 years.
* provide sample 2-7 days.
* Professional after-sales service.
* We have a complete industrial chain and professional engineers can make battery packs that satisfy you as quickly as
possible.
If you want to know more about the information, please free feel to contact me. Thanks!

包裝和運輸

填料

1). Carton Size: customized or based on actual weight and volume, best quality.

2). 5-layers exporting carton or customized outer packaging for paper bags;

運輸

1). By Express (3-30working days),there are express shipping or economic shipping,suitable for small quantity.

2). By Train(25-28days),for EU Country,including customs clearance, all the import tax fees and UPS delivery to the door.

3). By Sea (15-30 days), it suitable for regular mass production.

We cooperate with excellent international freight forwarding companies to provide cheap and efficient logistics services. If you have any shipping issues, please feel free to contact me.



常問問題

問：我應該如何付款？您接受哪種付款方式？
A: T/T, PayPal, Western Union.

問：樣品訂單是否可以接受？
答：是的，對於大多數電池，用於質量測試的樣品訂單是合理且可以接受的。

Q: Is your battery quality approved?
A: Yes, we guarantee that all cells are 100% original from Brand. And we will have full inspection of each cells and grouping them before assembling into battery packs. And all finished battery packs will be under a full inspection
before shipment.

Q: How can you prove that your cells are 100% original?
A: We can show you the original pack list and other related documents.

Q: what is your lead time if I placed an order?
A: For all products in stock, our lead time is within 2 working days after payment received. For these that we don't stock for the moment such as customized battery packs, the lead time is around 7-10 days.

Q: 你們的保固是什麼？
A: These situations not provide return nor refund:
1.After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.
2. 因充電造成的電池鼓包/焊接、電池組無保護BMS等損壞。
