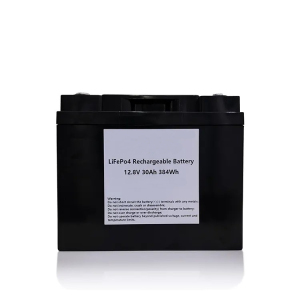

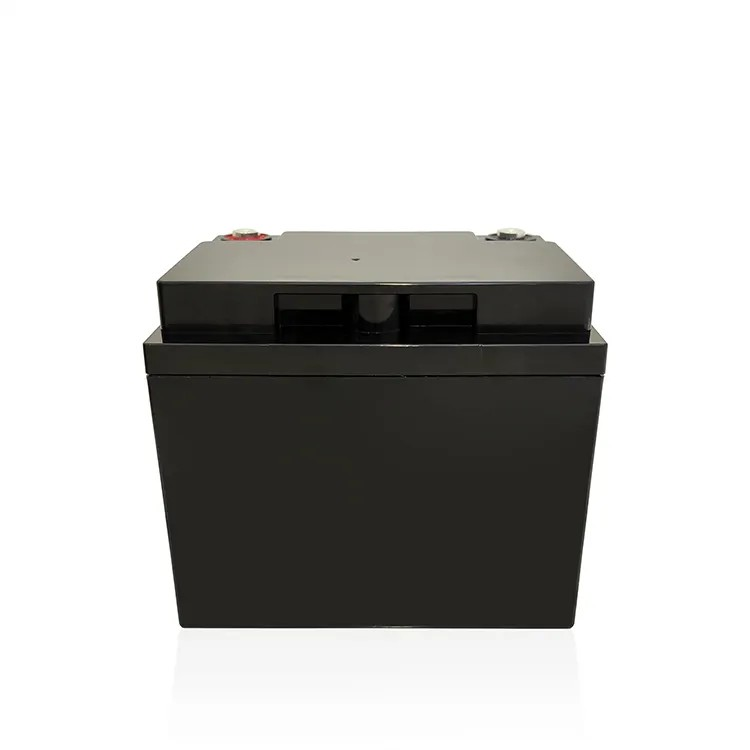

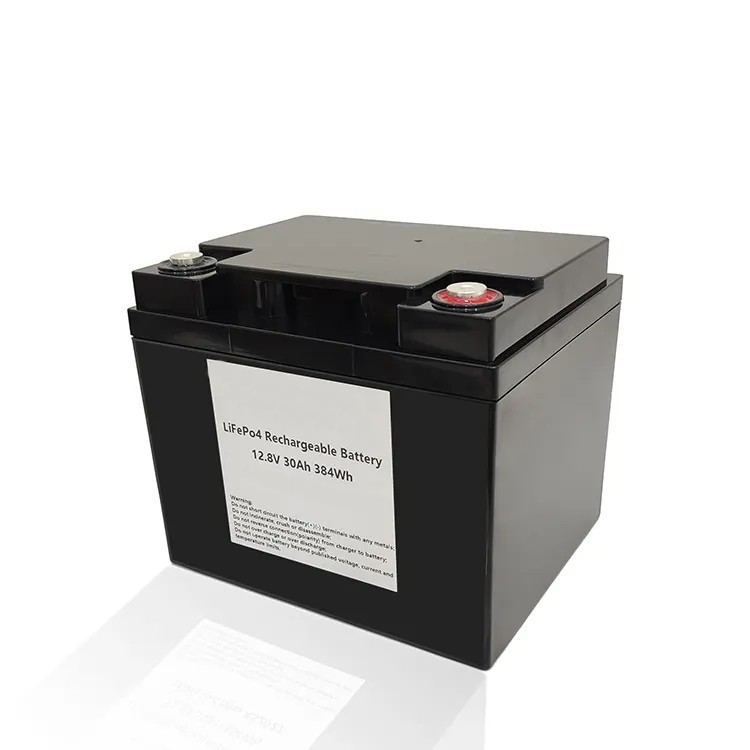

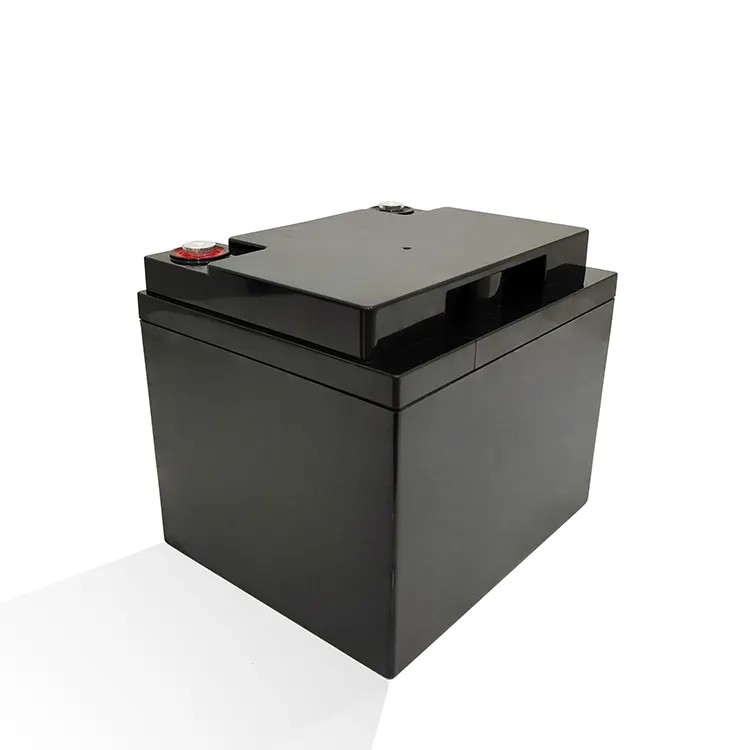

LiFePO4 Battery 12.8V 30Ah

2025-01-02 02:33

規範

電氣特性	標稱電壓	12.8伏
	標稱容量	30Ah @0.2C
	能源	384小時
	內部電阻	≤55mΩ
	循環壽命	>2000 cycles @ 0.2c charge/ discharge at 100%DOD,End of life 70%
	月 自放電	25℃每月≤3.5％
標準收費	充電電壓	14.6±0.2伏
	Charge Mode ( CC/CV)	在0℃~45℃溫度下，以0.2C5A的恆流充電至14.6v，然後以14.6v的恆壓連續變化，直到電流不大於0.02C5A
	充電電流	5A
	最大充電電流	10A
標準排放	放電電流	30A
	最大持續電流	30A
	Max Plus Current	60A (<3S)
	Discharge Cut-off  Voltage	10.0伏
環境的	充電溫度	0℃～45℃
	放電溫度	-20℃至60℃
	貯存溫度	0℃～45℃
	防水防塵	IP55
機械	Cell& Method	IFR32700 N34,4S5P
	塑料外殼	ABS
	尺寸（長*寬*高*高）	195*130*156*167mm
	重量	大約4.9KG
	終奌站	M6

應用

1）太陽能，家用，電動汽車產品。

2)Widely applied in solar street light,wind energy storage ,UPS and telecommunication power supply, photovoltaic power station etc.

我們的工廠

為什麼選擇我們

【High-quality battery cell】: Adopts high-quality A-grade battery cell, full capacity without false labeling to support the test

【Competitive price】: 500,000+ pieces produced annually, branded battery source production factory with competitive price

【Wide range of products】: Lead acid replacement battery, Rack mount battery, Wall-mounted energy storage, Stacked batteries....



包裝與運輸

常問問題

Q1：我可以測試樣品嗎？樣品訂單的交貨時間是多少？
A1: Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.

Q2：產品的保修是什麼？
A2: 1~10 years,Since our product range is wide,Minimum 12v 30Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.

Q3：貴公司的優勢是什麼？
A3: We're direct factory,have very rich experience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.

問題4：您接受OEM / ODM嗎？
A4: Yes,welcome!

Q5：批量訂單的交貨時間是什麼？
A5: Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.

Q6：付款條件是什麼？
A6: Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.

Q7：可以提供哪種證書？
A7: CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
