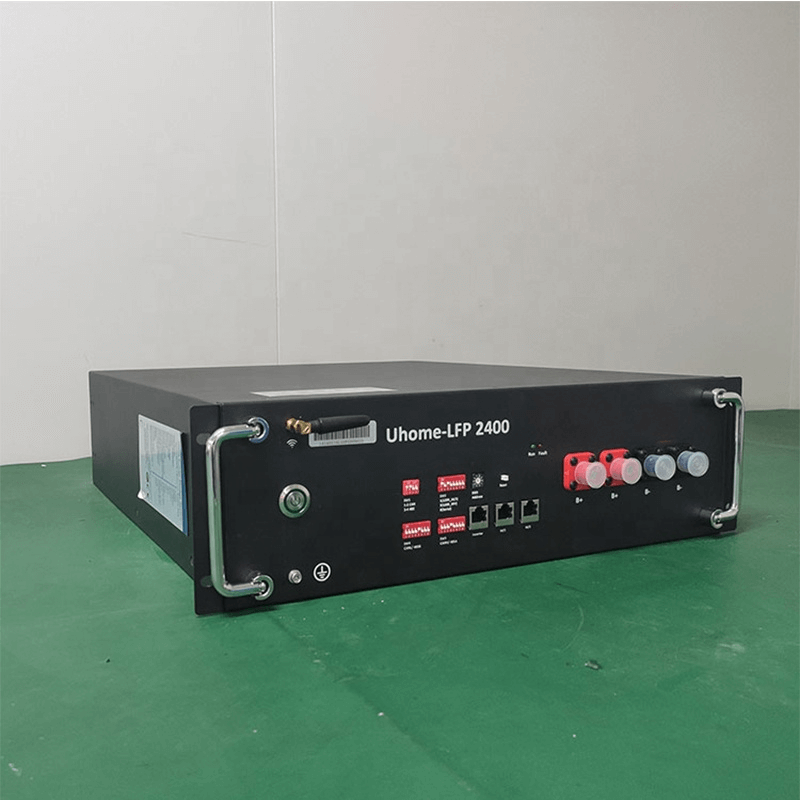

模型 | Uhome-LFP 5000 | Uhome-LFP 2400 | Uhome-LFP 2500 | Uhome-LFP 2600HV |
總能量(DC) | 5.1千瓦時 | 2.4千瓦時 | 2.5kWh | 2.56kWh |
可用能量(DC) | 4.6kWh | 2.2千瓦時 | 2.2千瓦時 | 2.2千瓦時 |
額定放電/充電功率 | 3.0kw | 2.75kw | 3.75kw | 4.6kw |
峰值功率(僅放電) | 6kw 3s | 3kw 3s | 3kw 3s | 3kw 3s |
恆流(僅放電) | 80A | 40A | 40A | 20A |
電壓 | 48-56Vdc | 48-56Vdc | 48-56Vdc | 96-112Vdc |
標稱電壓 | 51.2Vdc | 51.2Vdc | 51.2Vdc | 102.4Vdc |
額定電流 | 60A | 30A | 30A | 15A |
最大充電電壓 | 57.6Vdc | 57.6Vdc | 57.6Vdc | 115.2Vdc |
重量 | 45公斤 | 27.5公斤 | 23公斤 | 24公斤 |
尺寸(毫米) | 500*442*135mm | 500*442*133mm | 500*442*88mm | 500*442*88mm |
最大推薦 DOD | 90% | |||
操作條件 | 室內的 | |||
工作溫度 | 0--45度(充電); -10-- 50度(放電) | |||
WIFI頻率範圍 | 2400MHz--2483MHz | |||
濕度 | <60%(無冷凝水) | |||
污染程度 | 3 | |||
過電壓類別 | 二 | |||
冷卻方式 | 自然冷卻 | |||
案例材料 | 金屬 | |||
顏色 | 黑或白 | |||
安裝 | 壁掛式/地面安裝 | |||
防護等級 | IP20 | |||
防護等級 | 一世 | |||
最大並聯或串聯數量 | 8S/4P | 8S/8P | 8S/8P | 6S |
保證 | 10年 | |||
壽命 | >15歲 | |||
通訊 | CAN/RS485 | |||
保護方式 | 雙硬件保護 | |||
電池保護 | 過流/過壓/短路/欠壓/過溫 | |||
安全 | 歐盟委員會 | |||
有害物質分類 | 9 | |||
運輸 | UN38.3 |
The Uhome Energy Storage battery has following advantages

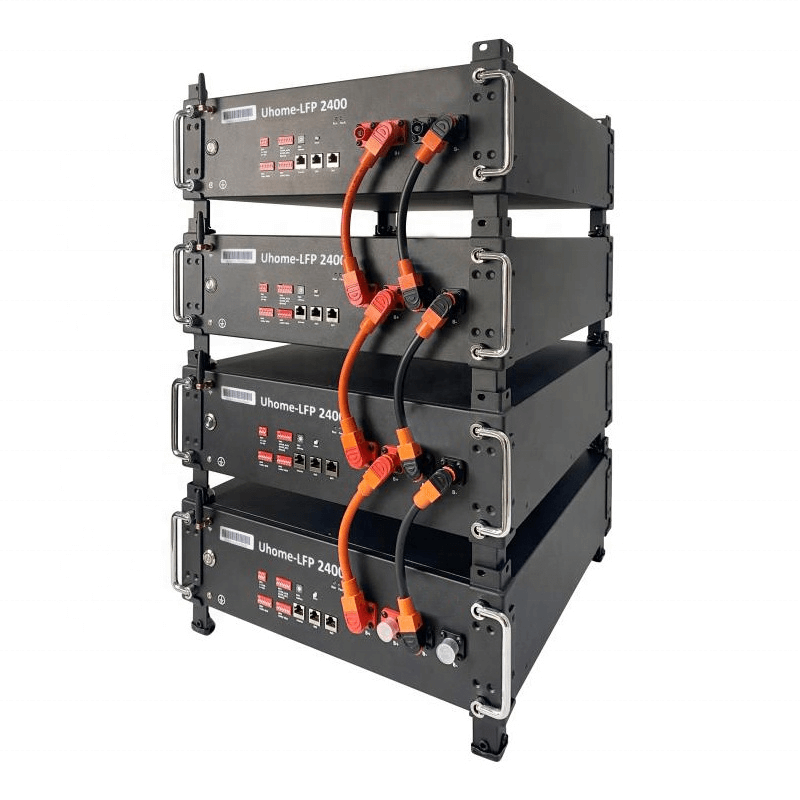

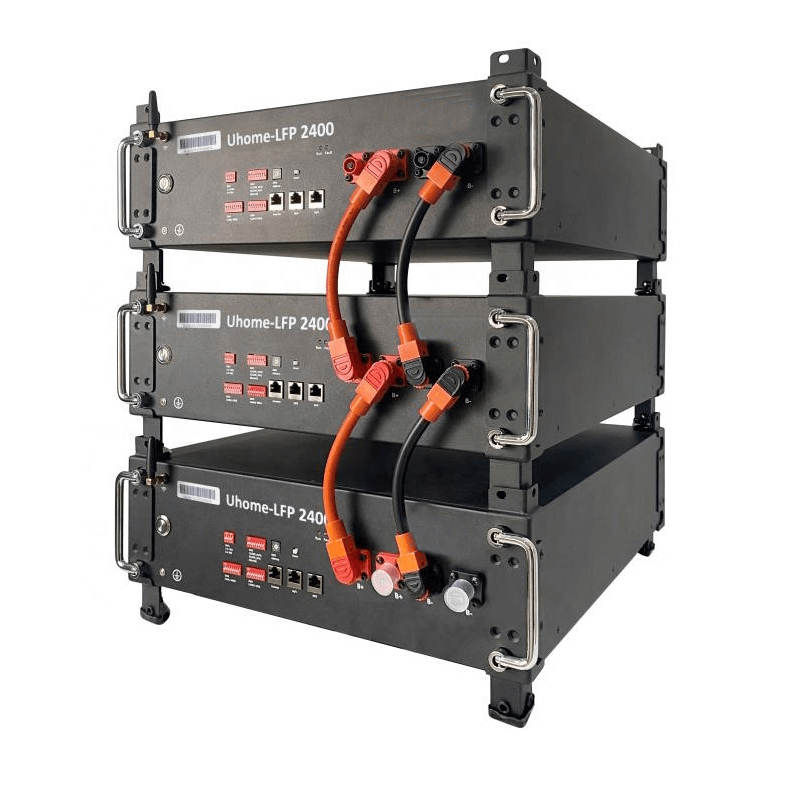

1.可自由串聯或併聯組裝:最高8S8P(448V326.4kWh)






答:是的,我們歡迎訂購樣品以測試和檢查質量。Q2。那交貨時間呢?
A:Sample needs 15-18 days, mass production time needs 25-30 days.Q3。電池的起訂量有限制嗎?
A: Depends on different models.For the very regular models,the MOQ is LOW.
Q4。您如何運送貨物以及需要多長時間到達?
A: We usually ship by TNT, UPS, FedEx.... It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5。如何進行電池訂購?
A: Firstly,pls let us know your requirements,such as the dimension,continuous&peak discharge current, application of the battery.
Secondly,pls let us know the purchasing quantity and when will your project start.We quote according to the details.
Thirdly customer confirms the price,sample and places deposit for formal order.
第四,我們安排生產。
Q6. Is it OK to print my logo on battery ?
答:是的。請在生產前正式通知我們,並首先根據我們的樣品確認設計。
Q7:您對產品提供保證嗎?
答:是的,我們為我們的產品提供12個月的保修。
Q8:如何處理故障?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new batteries with new order to replace the defective.
Thirdly,we will test the defective batteries and make 8D report.We will find out the reason and propose the
improvement measures for future production.
