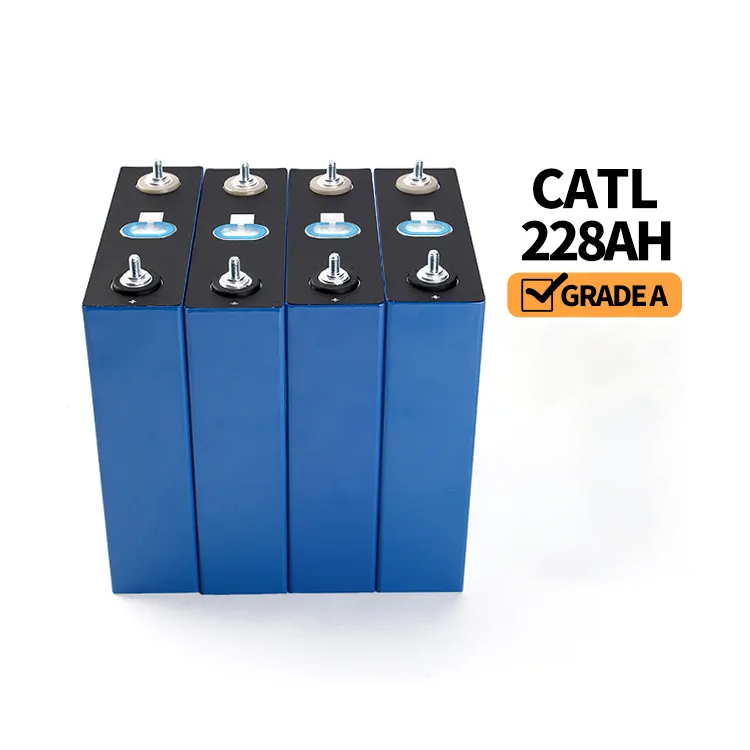

CATL 230Ah 228Ah 3.2V Lifepo4 Prismatic Lithium Battery Cells For Solar Bank Energy Storage

2023-06-08 06:11

規範

Supplier	多合一電池科技有限公司
模型	CATL LF228 230Ah LiFePO4 3.2V Battery cell
實際容量	Tested over 230Ah
標稱電壓	3.2v
最大放電電流	1C/ 230A
最大充電電壓	3.65伏
交流阻抗電阻	≤0.5mΩ
充電溫度	0-60℃
出料溫度	-30-60℃
循環壽命	6000 times SOC 80%
重量	4.2公斤

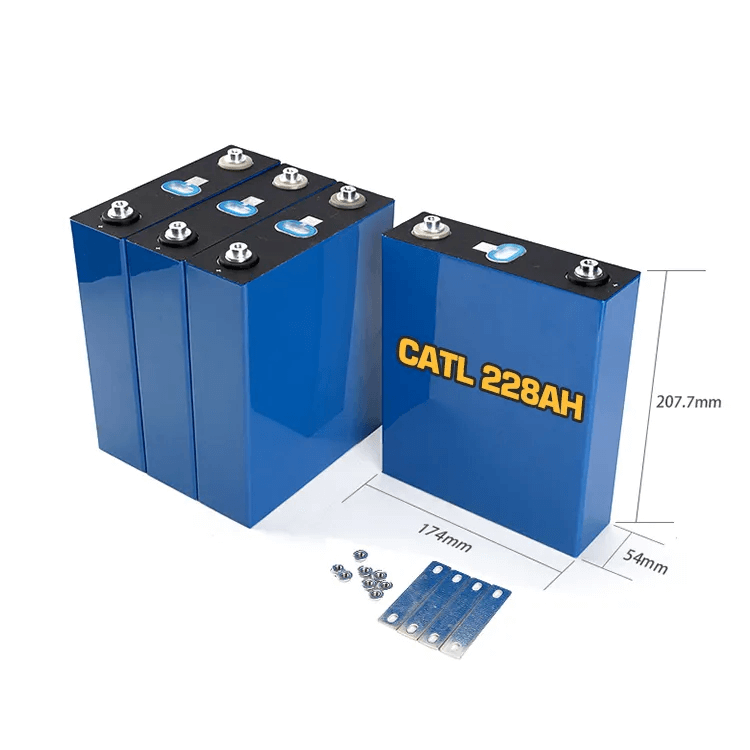

尺寸（長寬高）	17454208mm
應用領域	Solar Energy Storage Systems,automotive,Home storage and organization,New Energy Passenger Car,New Energy Bus,New Energy Professional Car,New Energy Construction,New Energy Ship,Telecom ESS,Grid ESS,Energy Storage on Power Generation,Energy Storage on Power Consumption,off-grid and island/isolate systems,UPS backup power

特徵
1.容量大，放電電壓穩定
2.更長的工作時間和高性能
3.重量輕，體積小
4.優異的放電性能和較小的內阻
5.無記憶效應，放電性能好，高負荷，耐高溫
6.環保無污染
7. 100％正品原裝鋰離子充電電池
8.具備防爆和電路保護功能

9. Long cycle life 5000 times

10. Good consistency, low self discharge

注意

1.This item is Original Grade A CATL 230Ah LiFePO4 cell, the QR code is intact, Grade A+, Brand new.
2. After our test, the maximum discharge capacity can reach 240Ah.
3.The price come with Free Bus bars and Bolts. one battery will come with one set bus bar and bolt（e.g.,If buy 4pcs battery,we will send 4pcs cells with 4 pcs busbars and 8pcs bolts）If need more please contact us online.Thank you!
4. One battery with one insulation battery sheet
5. The bus bars size: 75*20*2mm(cooper plated with nickel) Screw size: M6

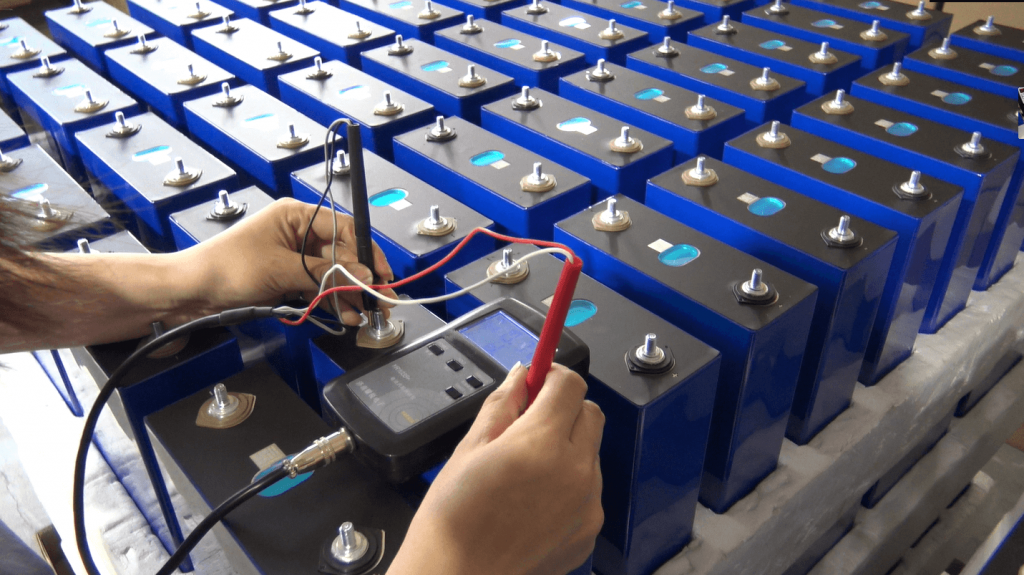

6.We tested every battery cell's Voltage ,Internal resistance before shipping out from China.

Important & Warmly Reminder

Batteries should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃.

Avoiding contact with corrosive substances and staying away from fire and heat source. The battery should be charged and discharged every 6 months.The SOC for storage is between 30% ~ 50%
1. When the battery is charged and discharged, the conditions for monitoring and protecting the battery voltage, current and temperature shall be ensured.
2. Please keep the battery away from the heat source, fire source and other corrosive environments such as water,heating, strong acid and strong alkali.
3. Do not short circuit the battery or install it with incorrect polarity at any time，otherwise it can cause serious damage to the battery and cause danger.
4. Do not mix batteries of different models or manufacturers.
5. Do not use external force to make the battery fall, impact or puncture. Do not disassemble the battery or change the external structure.
6. When the battery is not used for a long time, please keep the battery in the state of 30%-50% SOC, and avoid the environment of strong direct sunlight or high temperature and humidity.
7. When operating the battery, it is necessary to wear rubber gloves and other protective devices.
8. In case of leakage, smoke or damage of battery, please stop using immediately.
9. DIY battery pack must be getting the cells balanced before assembly.

這些情況不提供退貨或退款
*After the assembly or assembly process happen any problem, such as the protection board connected to the wrong wire burned lead to battery damage, charger failure, the assembly error or unbalanced assembly, etc.

*For damage caused , such as battery bulge/welded, battery pack without protection BMS caused by charging.

Tip: These products are batteries only, without protection board,you need to purchase a match one! You can check our shop and search BMS.

快遞和物流
In addition, because the battery is prohibited product, many courier and logistics are unable to send, the arrival will indeed be slower, so please wait patiently after place an order.

應用
