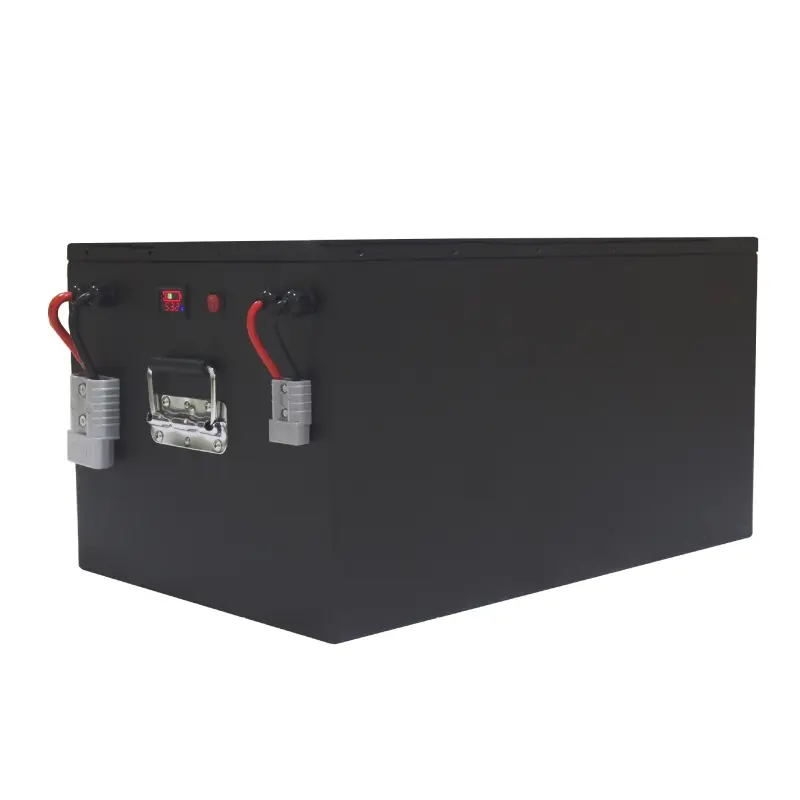

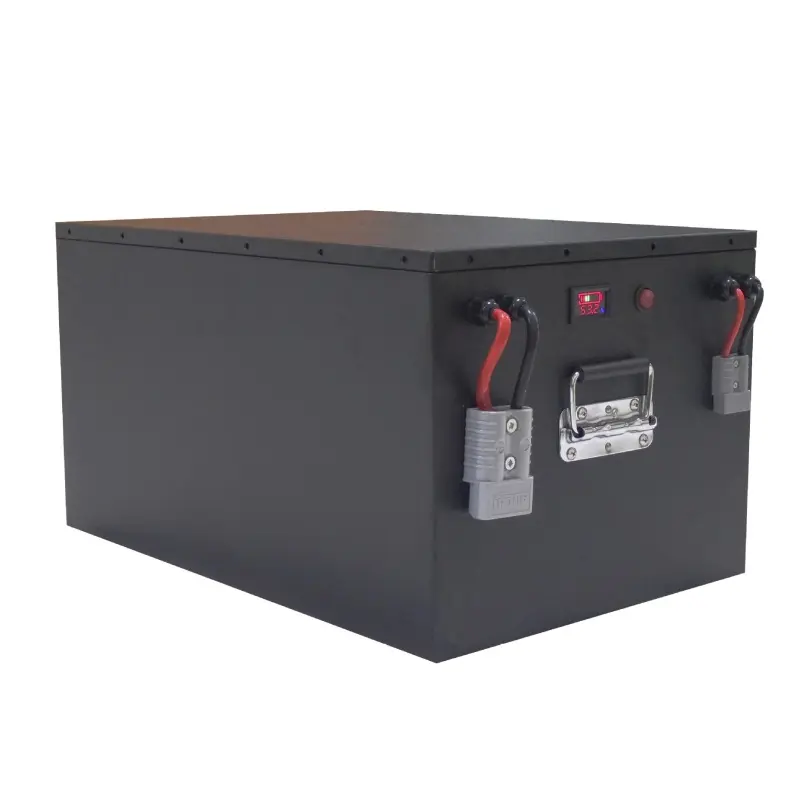

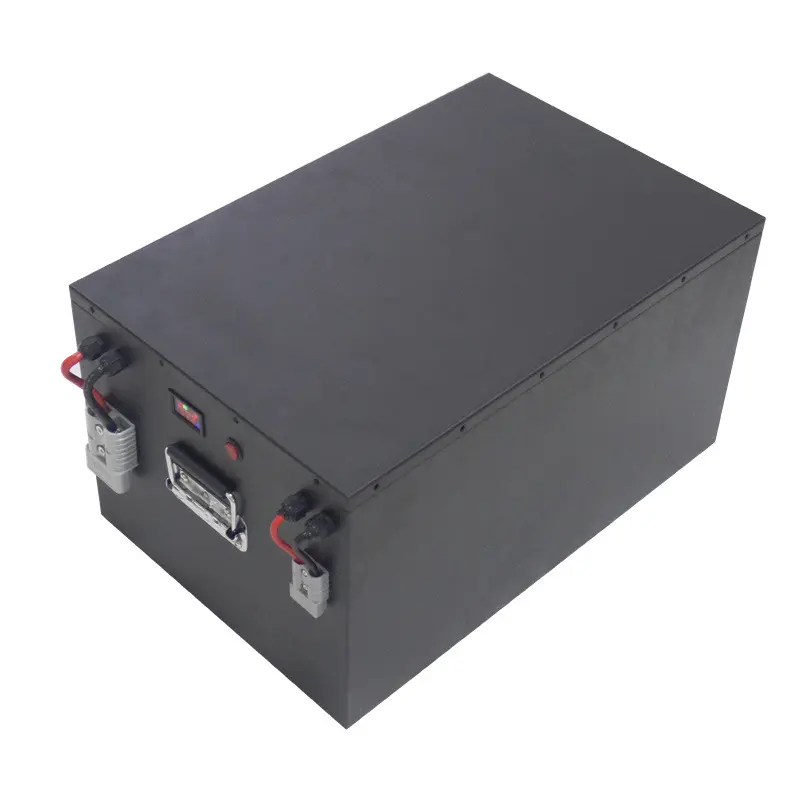

Lifepo4 Lithium Iron Phosphate Battery 72V 50Ah For Ebike Motorcycle RV Golf Cart

2023-06-01 02:15

規範

標稱電壓	72伏
標稱容量	50Ah
內部阻力	≤220mΩ
循環壽命	2000 times at 85% dod 5000 times at 65% dod 8000 times at 40% dod
End of charge Voltage	14.6伏
End of charge Current	100毫安
Max.Continuous charge current	50A
收費方式	0.2C (0.5A) CC/CV
End of discharge Voltage	9.2伏
Max. Pluse Discharge Current	50A/10S
Charge Temp	0〜45℃
Discharge Temp	-10~55℃
Storage Temp	-10〜45℃
Dimension(D×W×H)	332170220mm
重量	≤20Kg
內置自動電池保護系統	是

Charge plugs and Discharge connectors optional

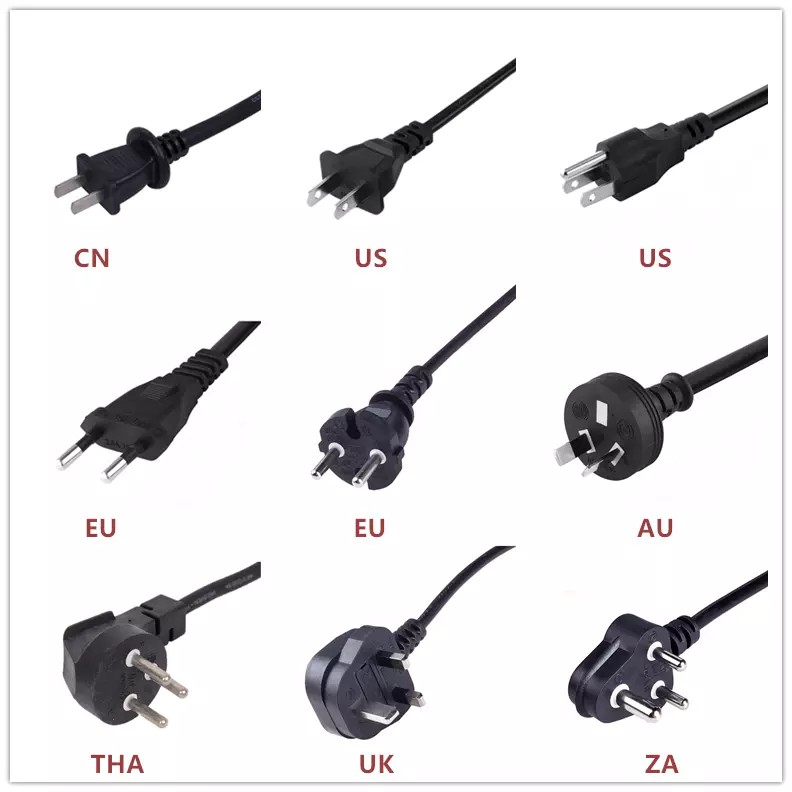

1.Charger Plug: US EU UK AU plugs optional, will provide according to delivery country if without request

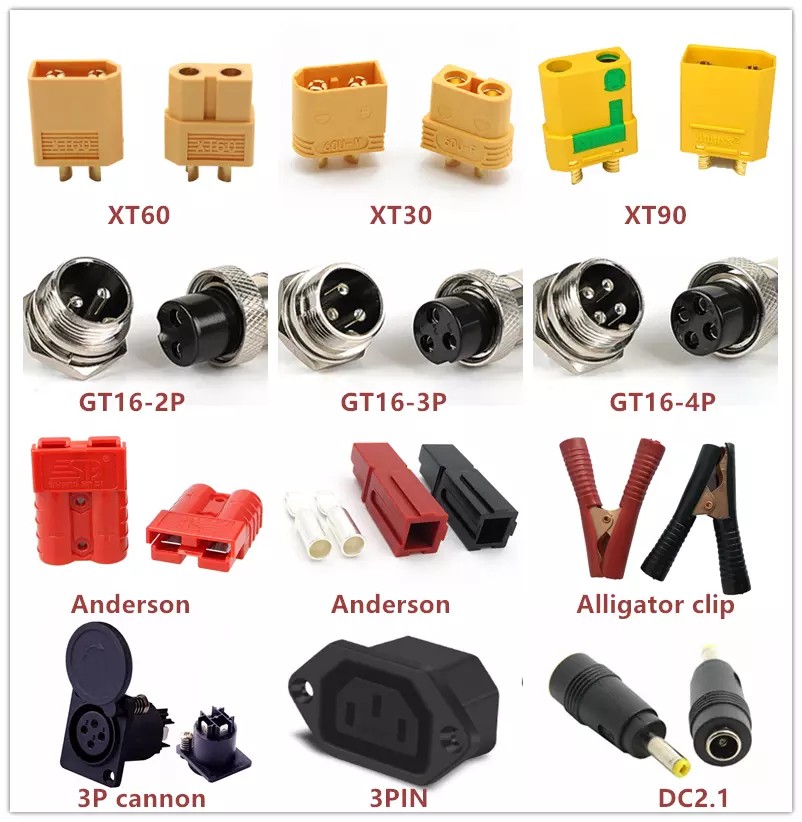

2.Discharge Connector: There are 12 kinds optional as below picture, will provide naked cable or soldered with default connector if without requested.

特徵

1.Lighter weight, smaller size

2.High temperature performance

3.Extremely safe, no explosion, no fire under collision

4.強大的過放電抗性和電荷保持力

5.Strong charging acceptance and quick-charging capability

6.Maintenance-free and no acid or water for maintenance in usage

7.Large capability and long life for all high power output applications

8.Environmentally friendly non-toxic, non-contaminating, no rare metal.

9.Low self-discharge and good discharge performance at low temperature

10.Excellent large current discharge performance especially in startup and climbing

OEM代工

We also can customize the battery 12v/24v/36v/48v/72v 100h,120ah,200ah,300ah,400ah,800ah with metal box. The size and shape are flexible according to your given size. And if necessary, we can offer a remote LCD display to monitor the battery status.
To welcome the world cooperation we accept OEM with your logo design.

應用

應用領域

* Electric Vehicles for Commercial and Commuting * Electric Scooter * Golf Cart/ troller * Electric Mobility * Electric Motorcycle * Electric Bicycle * Electric Wheelchair * Electric Power Mower * RV (Recreational Vehicle) * AGV (Automatic Guided Vehicle) /AGV cars/ AGV robots/ Self-guided

我們的工廠

常問問題

1、Q：AIN的主要產品是什麼？
A: Rechargeable battery. NiMH, Li-ion, Lipo battery and power battery pack.
2，問：什麼是超額收費？
A: 充電後，測試電池的初始狀態和容量。以 3C 電流充電至 10.0V，然後以 CV 模式充電至 0.01C。
觀察電池外觀變化。
3，問：什麼是過放電？
A: 充電後，測試電池的初始狀態。電池正常時，以0.5C放電至0V。觀察變化
電池外觀。
4.問：我可以訂購樣品嗎？
答：是的，我們接受樣品訂單以測試和檢查質量。可以根據需要製造電池。
5.問：您有起訂量限制嗎？
答：是的，我們有批量生產的起訂量限制，但取決於電池型號。請聯繫我們。
6.問：交貨時間如何？
答：樣品需要5到7個工作日。批量生產將需要25-30天。這取決於數量。
7.問：運輸和交貨時間如何？
A: Generally, battery will be shipped via Express, such as DHL, TNT, FedEx and UPS, delivery time is 3-5 business days. Or DDP service, delivery time is 11-15 business days. Airline and sea shipping also available.
8.問：售後服務如何？
A: We will offer you 2 years guarantee. If there are any problems, please inform us, we will offer you positive solutions.
