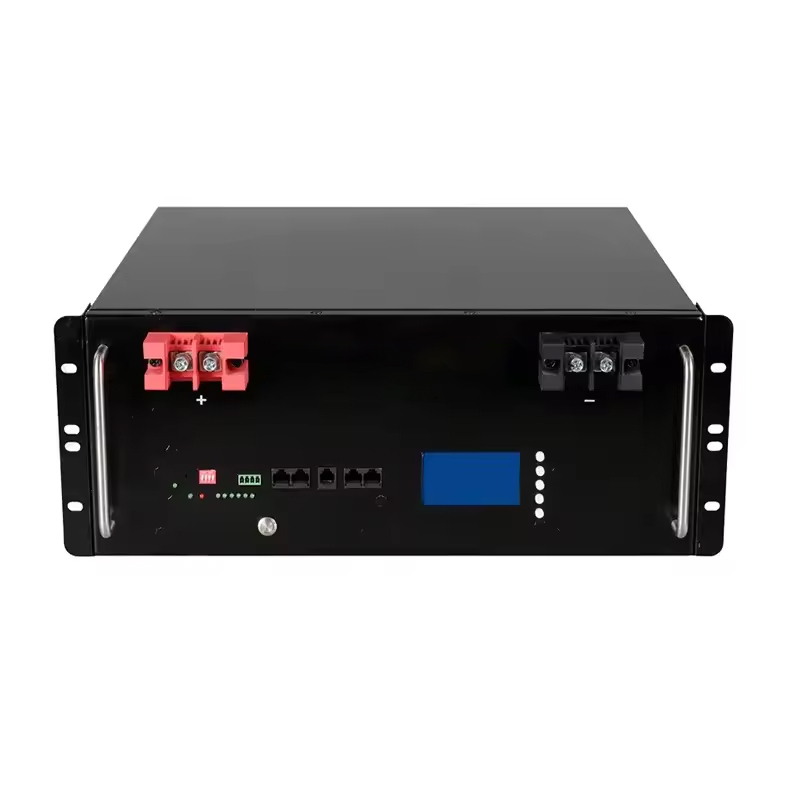

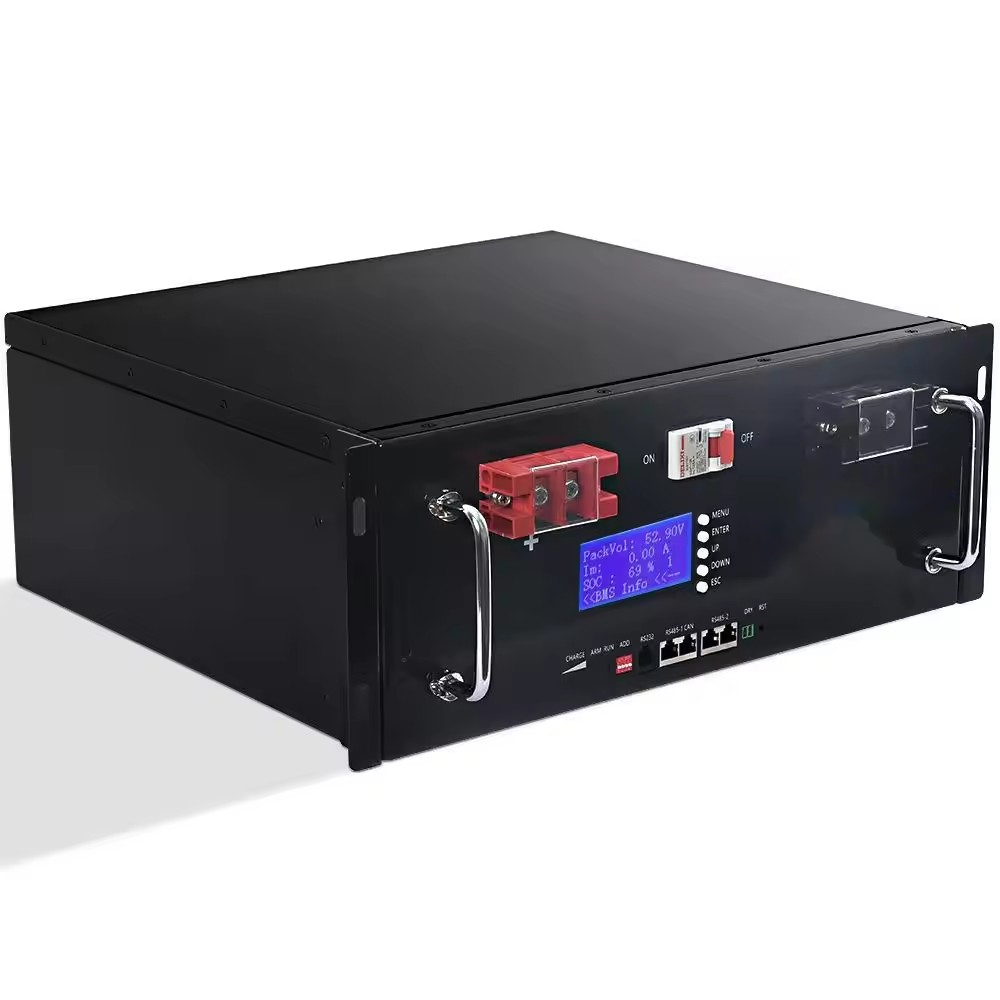

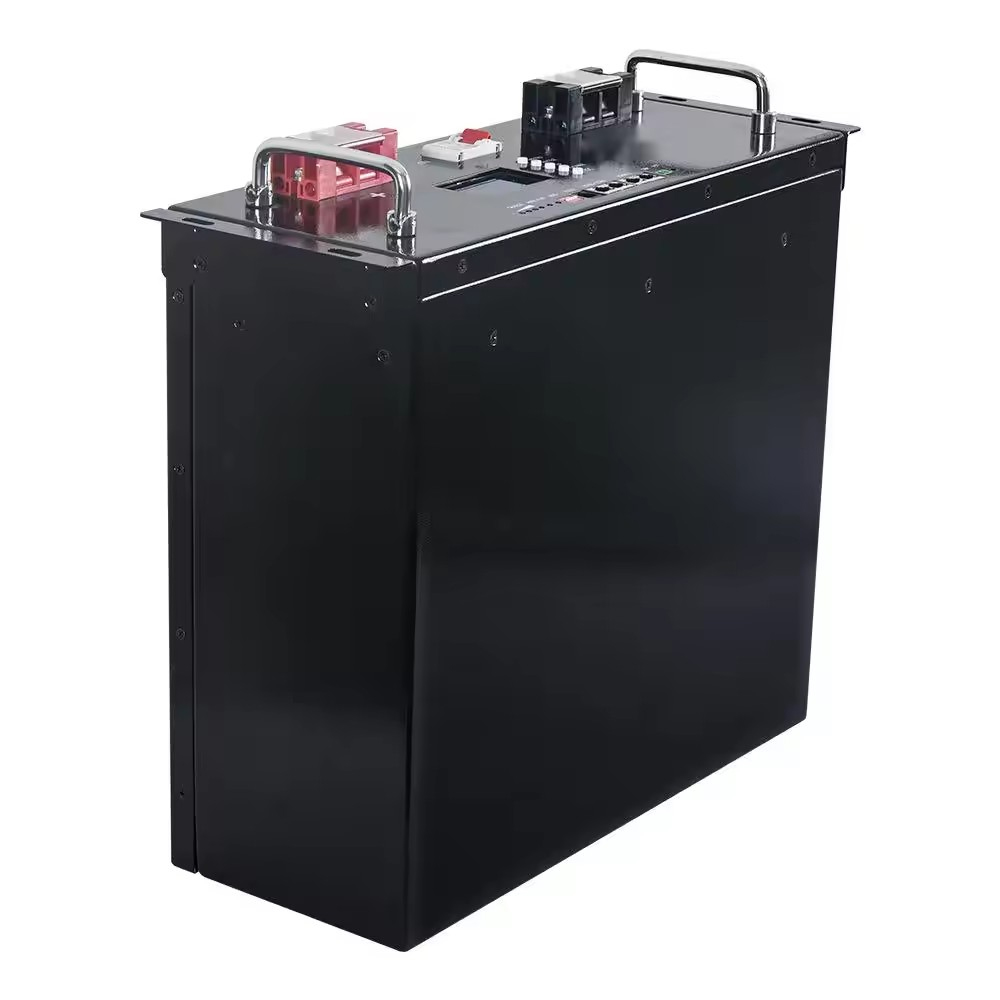

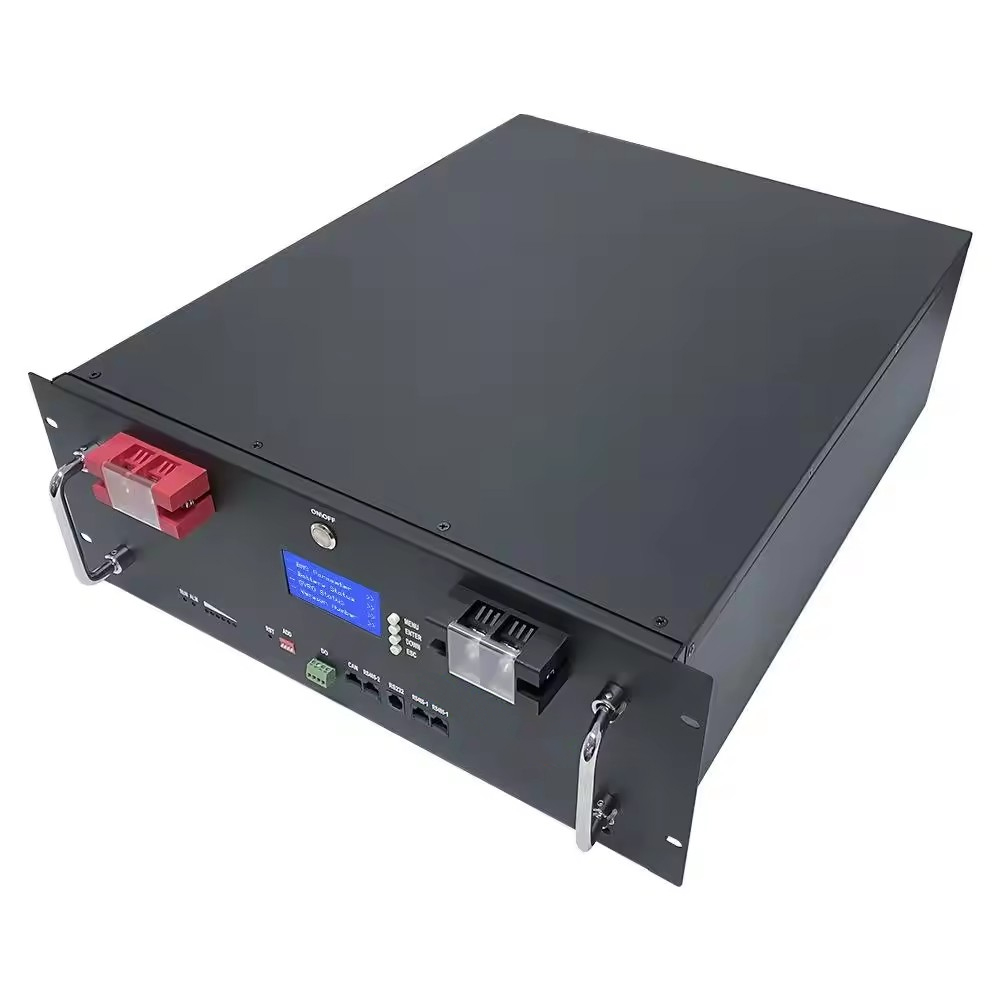

鋰離子太陽能電池51.2v 100ah 200ah 300ah

2024-08-27 11:02

產品描述

標稱電壓	51.2伏	51.2伏	51.2伏
標稱容量	100Ah	230Ah	304AH
能源	5120瓦時	11776Wh	15360wh
Series or Parallel Connection	16S1P	16S1P	16S1P
最大充電電流	100A	200A	200A
Charge Current (-20 to - 10 ºC)	≤0.05C	≤0.05C	≤0.05C
推薦充電電壓	56V-57.6V	56V-57.6V	56V-57.6V
BMS充電電壓截止	57.6V (3.75±0.025vpc)	57.6V (3.75±0.025vpc)	57.6V (3.75±0.025vpc)
重新連接電壓	54.6V (3.34 ±0.05vpc)	54.6V (3.34 ±0.05vpc)	54.6V (3.34 ±0.05vpC)
Dimensions (L x W x H)	440*435*222mm (17.3x17.1x8.74”)	480*248*618mm	475*255*770mm
重量	70KG with wooden packing	:116KG with wooden packing	138KG with wooden packing
通訊接口	RS485 (Optional)	RS485 (Optional)	RS485/CAN (Optional)
案例材料	金屬	金屬	金屬
Enclosure Protection	IP54	IP54	IP54
最大連續放電電流	100A	200A	200A
BMS放電電流截止	105A	230A	230A
重新連接電壓	45V	45V	45V
放電溫度	-20 to 60ºC (-4 to 140 ºF)	-20 to 60ºC (-4 to 140 ºF)	-20 to 60ºC (-4 to 140 ºF)
充電溫度	0 to 45ºC (32 to 113 ºF)	0 to 45ºC (32 to 113 ºF)	0 to 45ºC (32 to 113 ºF)

* Please Click Here:We Provide OEM /ODM Service !
* Quick Delivery From China.
We are committed to making the safest lithium iron phosphate batteries.
All of our batteries have undergone rigorous testing and are certified safe for use in applications around the world.
All lithium batteries in our sales comply with CE, UN38.3,MSDS and other transportation regulations, quick delivery from spot!
If you need product related certificate, please contact us to send to you!
* For additional benefits For resellers

we provide super price for you and policy, We offer one-stop solar energy storage solutions,please contact us directly and we will tell you more. Most importantly, we can provide you with professional solutions tailored to your local market.



Products Feature

1.Excellent safety performance: Safest lithium iron phosphate battery, CE BIS, MSDS, UN38.3 approved, with built-in BMS.

2.Long cycle life and deep cycle: Performs more than 6000 cycles, 6-8 times longer than lead acid battery.

3.No memory effect, highly efficient and high energy density.

4.Compact size and light weight: 1/2 size & weight of lead acid battery

5.Excellent high temperature performance

6.Low self-discharge rate: < 3% per month

7.High IP standard: IP65 Waterproof.



應用

我們的工廠



運輸包裝

常問問題

Q1. Do you have MOQ (Minimum Order Quantity) limit?
A: No, ALL IN ONE do not have MOQ limit, 1pc sample order or small quantity is available.

Q2。那交貨時間呢？
A: Standard product lead time: Samples: 3-5 days, Bulk order: 3-4 weeks.
Customized product lead time: 3-4 weeks both for sample or bulk order.

Q3. How do you ship the goods? How about the Shipping time?
A: By air door to door (6-12 days): FEDEX, UPS or DHL, suitable for urgent small order.
By sea door to door (25-50 days): suitable for bulk order.
By sea to delivery port (20-35 days): Suitable for bulk order.
By Air to airport (3-5 days): Suitable for urgent heavy package.

Q4. How to proceed with an order?
A: Firstly, providing your requirements or applications, then we will provide battery solution and quote accordingly.
Secondly, confirming the order and do the deposit for it, then we will arrange the production.

Q5. Is it available to print my logo on the product?
A: Yes. For OEM Demand please send us your logo and we will make a label for the product. For product with metal/aluminum case, logo silk-print on the case is available.
