規範
項目 | 參數 |
型號編號 | AIN72105 |
標稱電壓 | 76.8V |
標稱容量 | 105Ah |
電池能量 | 8064Wh |
Max Continuous Charge Current | 105A |
最大連續放電電流 | 250A |
充電截止電壓 | 87.6伏 |
放電截止電壓 | 48伏 |
尺寸 | 740*320*250mm customizable |
重量 | 80kg |
自放電 | ≤3% per month at 25 |
循環壽命 | >4000 cycles |
充電溫度 | 0 ℃ to 45 ℃ (32F to 113F) @65±20% Relative Humidity |
放電溫度 | -20 ℃ to 60 ℃ (-4F to 140F) @65±20% Relative Humidity |
保護 | Built-in Smart BMS |

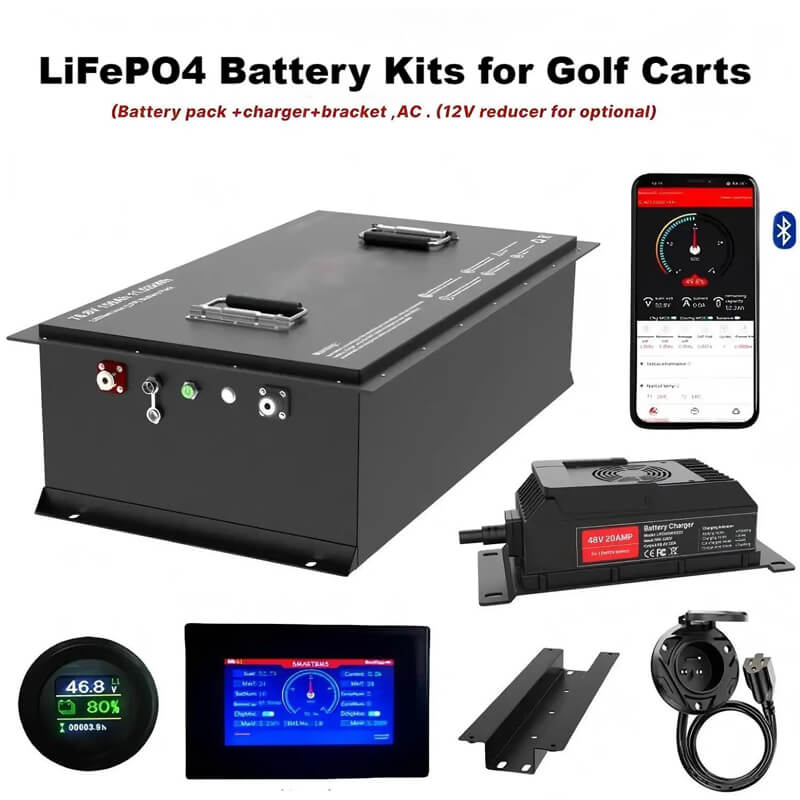

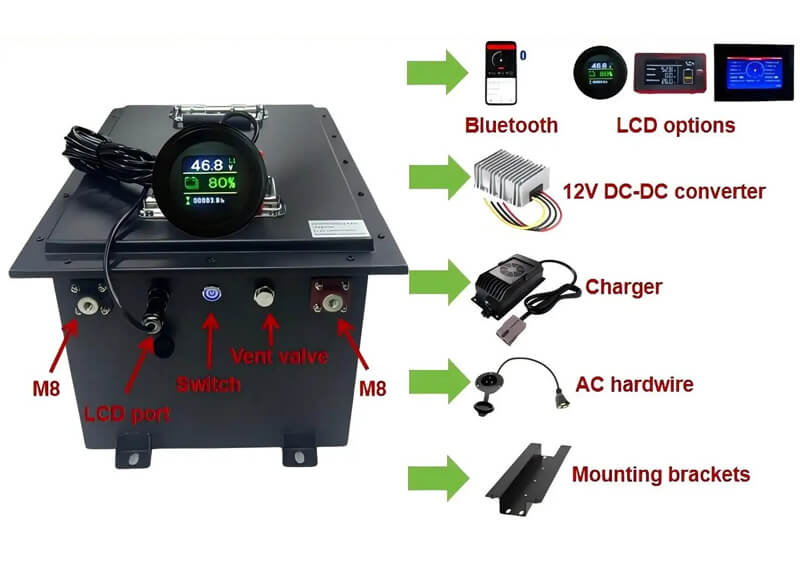

Function for Option | LCD or Bluetooth |

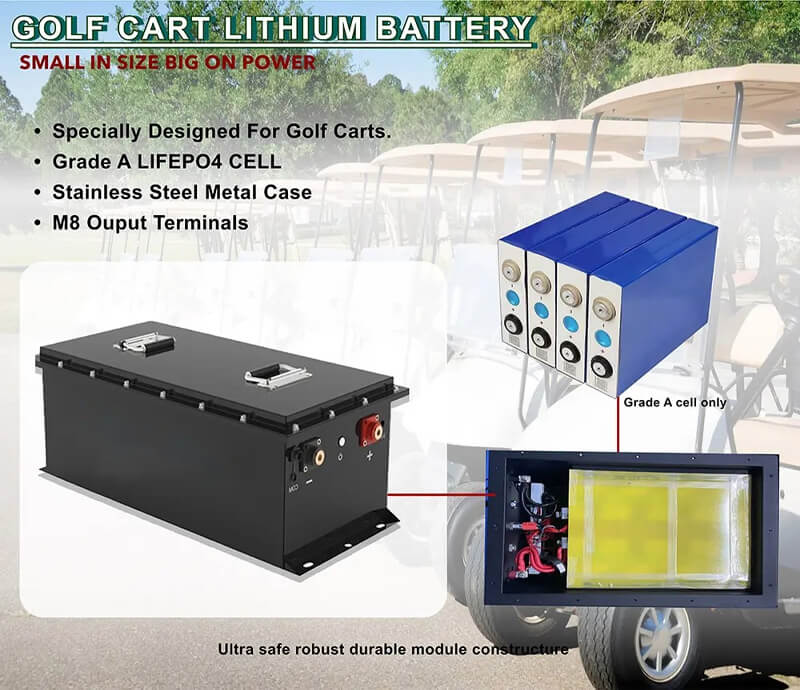

住房 | Steel Case |
Charging full time | About 6 hours (@0.2C) |
Product list
Offering comprehensive OEM and ODM services, we provide flexible bulk and wholesale pricing options tailored to your needs.
Contact us for wholesale prices.
模型 | 標稱容量 | Max Continuous Charge Current (A) | Max Continuous Discharge Current (A) | Max Inrush current (10s) | 重量 | Size(L*W*Hmm) |
AIN3650 | 38.4V50Ah | 50A | 150A | 150A | 20kg | 483*170*240 |
AIN3680 | 38.4V90Ah | 60A | 200A | 150A | 29公斤 | 552*240*218 |
AIN36100 | 38.4V100Ah | 100A | 200A | 350A | 38公斤 | 385*325*245 |
AIN36150 | 38.4V150Ah | 150A | 200A | 400A | 52kg | 572*308*204 |
AIN4850 | 51.2V50Ah | 50A | 150A | 350A | 25公斤 | 436*325*215 |
AIN48100A | 51.2V100Ah | 50A | 200A | 350A | 48公斤 | 472*334*247 |
AIN48100B | 51.2V100Ah | 50A | 200A | 350A | 45公斤 | 550*334*204 |
AIN48100C | 51.2V100Ah | 50A | 200A | 350A | 45公斤 | 580*332*200 |
AIN48105 | 51.2V105Ah | 50A | 250A | 350A | 45公斤 | 472*334*247 |
AIN48150 | 51.2V150Ah | 80A | 250A | 400A | 74kg | 800*316*217 |
AIN48200 | 51.2V200Ah | 80A | 250A | 400A | 98kg | 800*400*221 |
AIN72100A | 76.8V100Ah | 50A | 150A | 350A | 75kg | 740*320*250 |
AIN72100B | 76.8V100Ah | 50A | 150A | 350A | 75kg | 860*260*273 |
AIN72150 | 76.8V150Ah | 80A | 200A | 400A | 88kg | 770*446*217 |
AIN72200 | 76.8V200Ah | 80A | 200A | 400A | 142kg | 1040*260*273 |
應用
1. Forklifts,
2. Pallet trucks,
3. Underground mining locomotives,
4. Subway tunnel locomotives
5. Other powered vehicle.
我們的工廠
Expertise: in low-speed vehicles, golf carts, electric motorcycles, floor scrubbers, and other EV battery and chargers.
Strength: strong technical team that excels in OEM design. We can specially customize the battery size according to the customer's battery compartment to fit a variety of specific models. Moreover, we provide lead-acid battery conversion to lithium battery solutions, precisely customized to meet customers' unique requirements.
Heart: we care much about the consistency of the product itself, customer requirements, and dangerous goods transportation.
Goal: With a rich heritage in the battery industry, powerful customization capability, strict quality control, ALL IN ONE is committed to offer unparalleled lithium battery and charger solutions that drive innovation, efficiency and reliability.
包裝和運輸
常問問題
問:您有起訂量嗎?
A:No limited. More quantity has better price, we will check the best price for you.
問:您的付款條件是什麼?
A: We adopt T/T, Paypal, Wester union and so on.
Q: What about the delivery time and shipping?
A: some of times in stock, we can make 3-7days fast delivery. For USA,Canada,Australia and most of European country , we provide tax included services, door to door, once you place an order ,then you will receive your new battery pack in about 40-55 days at your home!
問:您通常採用哪種運輸方式?
A: UPS, FEDEX , Post Mail and so on. We can also ship with your own shipping agent.
問:貴公司哪些產品熱銷?
A: LiFePO4 battery 230ah, 280ah, 302ah, 50ah; 12V,24V, 48V 60V 72V LiFePO4 battery pack and so on.
